Winters FILLED/SS 6" 0/1500 PSI/KPA 1/2" NPT BTM PFP1081
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments

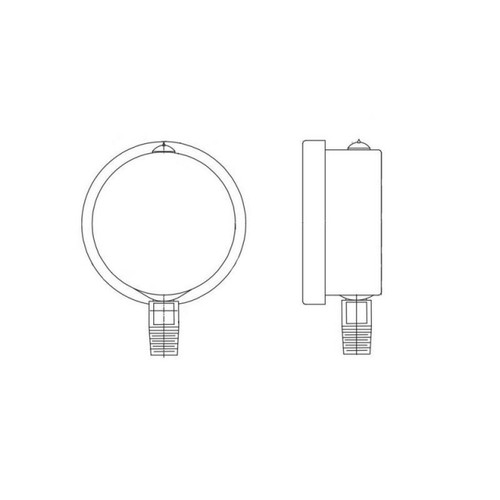

Winters FILLED/SS 6" 0/1500 PSI/KPA 1/2" NPT BTM PFP1081
$533.16
- Brand
- U.S. Winter instruments
- SKU:
- PFP1081
- UPC:
- 6.28311E+11
Winters, PFP1081, PFP 6", 0/1,500 PSI/kPa, 1/2" NPT Bottom Connection Premium Stainless Steel Liquid Filled Gauge
Features:
- Liquid filled stainless steel case protects against vibration and pulsation
- Bayonet ring
- Highly accurate
- Bottom mounted
- Under and overload stops
- Stainless steel wetted part
- Restrictor screw standard on dual scale (optional on single scale)
- Dry case available
- ASME B 40.100 compliant (EN837-1 available)
- CRN registered
Applications:
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
| Pressure Range | 0/1,500 PSI/kPa |
| Dial | 6" (150mm) |
| Case | AISI 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | AISI 304 SS bayonet |
| Socket | 316L SS |
| Connection | 1/2" NPT |
| Bourdon Tube | 316 SS |
| Movement | 304 SS |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | Laser welded socket to case |
| Over-Pressure Limit | 25% for pressures up to 1,450 PSI (9,998 kPa)15% for pressures over 1,450 psi (9,998 kPa) |
| Lens Ring Gasket | Buna N |
| Ambient Temperature | -40?F to 250?F (-40?C to 120?C) |
| Process Temperature | -40?F to 250?F (-40?C to 120?C) |
| Working Pressure | Maximum 75% of full scale value |
| Accuracy | ?1% ANSI/ASME Grade 1A |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
WINTER PFP1081R1 FILLED/SS 6" 0/1500 PSI 1/2" NPT BTM
$533.16
WINTER PFP1081R1 FILLED/SS 6" 0/1500 PSI 1/2" NPT BTM
U.S. Winter instruments
Winters FILLED/SS 1.5" 0-1500 PSI/KPA, 1/8" NPT BTM PFQ1210
$143.67
Features with all optional accessories:Pulsation resistant, liquid filled stainless steel caseGlycerin filled standardStainless steelCrimp-On bezelASME B40.100 compliantCRN registeredLead free...
U.S. Winter instruments

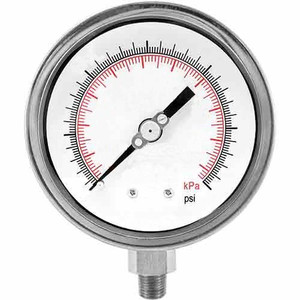

WINTER PFP1081ZR SS 6" 0/1500 PSI/KPA 1/2" NPT BTM WITH STABILIZR?
