Winters FILLED/SS 6" 0-3000 PSI/KPA 1/2" NPT BTTM PFP1083
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters FILLED/SS 6" 0-3000 PSI/KPA 1/2" NPT BTTM PFP1083
$533.16
- Brand
- U.S. Winter instruments
- SKU:
- PFP1083
- UPC:
- 6.28311E+11

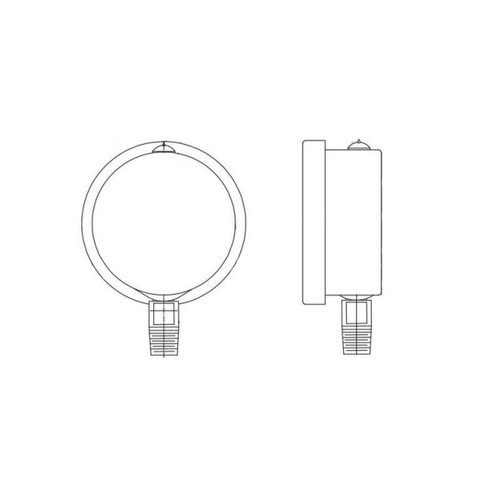

Winters, PFP1083, PFP 6", 0/3,000 PSI/kPa, 1/2" NPT Bottom Connection Premium Stainless Steel Liquid Filled Gauge
Features:
- Liquid filled stainless steel case protects against vibration and pulsation
- Bayonet ring
- Highly accurate
- Bottom mounted
- Under and overload stops
- Stainless steel wetted part
- Restrictor screw standard on dual scale (optional on single scale)
- Dry case available
- ASME B 40.100 compliant (EN837-1 available)
- CRN registered
Applications:
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Hydraulic equipment, pressure washers, oil field equipment, pumps, compressors and process systems
| Pressure Range | 0/3,000 PSI/kPa |
| Dial | 6" (150mm) |
| Case | AISI 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | AISI 304 SS bayonet |
| Socket | 316L SS |
| Connection | 1/2" NPT |
| Bourdon Tube | 316 SS |
| Movement | 304 SS |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | Laser welded socket to case |
| Over-Pressure Limit | 25% for pressures up to 1,450 PSI (9,998 kPa)15% for pressures over 1,450 psi (9,998 kPa) |
| Lens Ring Gasket | Buna N |
| Ambient Temperature | -40?F to 250?F (-40?C to 120?C) |
| Process Temperature | -40?F to 250?F (-40?C to 120?C) |
| Working Pressure | Maximum 75% of full scale value |
| Accuracy | ?1% ANSI/ASME Grade 1A |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
