Winters GAS TEST GAUGE 0-160 PSI/KPA PETG205
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters GAS TEST GAUGE 0-160 PSI/KPA PETG205
$18.00
- Brand
- U.S. Winter instruments
- SKU:
- PETG205
- UPC:
- 6.28E+11
- Availability:
- In Stock
Features:
- Economical pressure gauge and valve body assembly used for pressure testing
- Bleed port and plated housing on the gas test assembly
- Black steel case
- Dual scale (PSI/kPa)
- ?3-2-3% accuracy
- ASME B40.100 compliant
- CRN registered
Applications:
- Residential & commercial pressure testing of natural gas, air and water lines
- Suitable for non-clogging and non-corroding media
| Dial | 2" (50mm) white aluminum with black and red markings |
| Case | Steel painted black |
| Lens | Polycarbonate |
| Ring | Steel, painted black |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass |
| Pointer | Aluminum, black |
| Connection | 3/4" NPTF |
| Welding | #50 tin solder |
| Ambient/Process Temperature | -40degF to 150degF (-40degC to 65degC) |
| Gas Test | 40degF to 150degF (-40degC to 65degC) |
| Water Test | 32degF to 150degF (0degC to 65degC) |
| Working Pressure | Maximum 75% of full scale value |
| Accuracy | ?3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters GAS TEST GAUGE 0-100 PSI/KPA PETG204
$18.00
Features:Economical pressure gauge and valve body assembly used for pressure testingBleed port and plated housing on the gas test assemblyBlack steel caseDual scale (PSI/kPa)?3-2-3% accuracyASME B40...
U.S. Winter instruments
Winters GAS TEST GAUGE 0-30 PSI/KPA PETG202
$18.00
Features:Economical pressure gauge and valve body assembly used for pressure testingBleed port and plated housing on the gas test assemblyBlack steel caseDual scale (PSI/kPa)?3-2-3% accuracyASME B40...
U.S. Winter instruments
Winters GAS TEST GAUGE 0-60 PSI/KPA PETG203
$18.00
Features:Economical pressure gauge and valve body assembly used for pressure testingBleed port and plated housing on the gas test assemblyBlack steel caseDual scale (PSI/kPa)?3-2-3% accuracyASME B40...
U.S. Winter instruments
Winters WATER TEST GAUGE 2.5" DIAL 0-160 PSI/KPA PETW213
$22.50
Features:Economical pressure gauge and valve body assembly used for pressure testingBleed port and plated housing on the gas test assemblyBlack steel caseDual scale (PSI/kPa)?3-2-3% accuracyASME B40...
U.S. Winter instruments

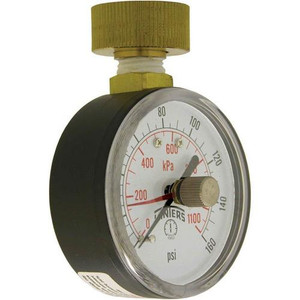

Winters WATER TEST GAUGE/MAX PTR 0-160 PSI/KPA PETM213
