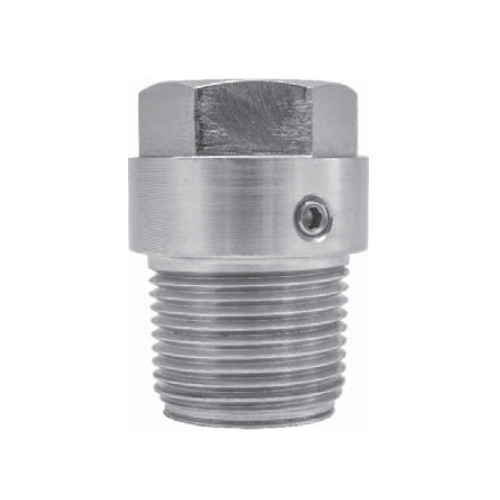

Winters IN LINE SEAL 1/4" F X 3/4" M LOW PRESS D15992
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters IN LINE SEAL 1/4" F X 3/4" M LOW PRESS D15992
$539.28
- Brand
- U.S. Winter instruments
- SKU:
- D15992
- UPC:
- 6.28E+11
Features:
- Constructed with a welded diaphragm placed at the end of the male NPT connection, eliminating the normal diaphragm chamber where solidification of the process media may render the seal inoperable
- Rugged and suitable for the most severe process applications
- ASME B40.100 compliant
- CRN registered
- Suitable for any process where freezing or solidification of the pressure media is a concern
| Housing | AISI 316 SS |
| Diaphragm | AISI 316L SS, welded |
| Minimum Operating Pressure | 50 PSI (345 kPa) |
| Maximum perating Pressure | 5,800 PSI (40,000 kPa) |
| Gauge Connection | 1/4" NPTF |
| Process Connection | 3/4" NPTM |
| Process Temperature | -20?F to 360?F (-29?C to 182?C) |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters #40 SEAL,1/4 X 1/4 F X M D40975
$365.28
Features:Compact (one piece), lightweight and economicalASME B40.100 compliantRoHS compliantCRN registeredApplications:Offers protection for pressure instruments (gauges and transmitters) from...
U.S. Winter instruments
Winters #40 SEAL 1/4" X 1/2" F X M D40976
$365.28
Features:Compact (one piece), lightweight and economicalASME B40.100 compliantRoHS compliantCRN registeredApplications:Offers protection for pressure instruments (gauges and transmitters) from...
U.S. Winter instruments
Winters #40 SEAL,1/4 X 1/4 F X F D40973
$365.28
Features:Compact (one piece), lightweight and economicalASME B40.100 compliantRoHS compliantCRN registeredApplications:Offers protection for pressure instruments (gauges and transmitters) from...
U.S. Winter instruments
Winters #40 SEAL 1/4" X 1/2" F X F D40972
$365.28
Features:Compact (one piece), lightweight and economicalASME B40.100 compliantRoHS compliantCRN registeredApplications:Offers protection for pressure instruments (gauges and transmitters) from...
U.S. Winter instruments
Winters LOW PRESS 4" 0-15" H20 VAC 1/4 SS BACK PLP4240V
$678.48
Winters, PLP4240V, PLP 4", 0/15" Water/Vac, 1/4" SS Back Low Pressure GaugeFeatures:Highly accurate reading of low pressuresStainless steel wetted partsRanges from 15" H2O/oz to 10 PSIOverpressure...
U.S. Winter instruments
Winters LOW PRESS 4" 0-100" H20 VAC 1/4 BR BACK PLP4233V
$285.07
Features:Suitable for measuring gaseous media both corrosive and non-corrosiveUsed to measure natural gas pressure as well air flow indication and leak detectionVacuum pumps, air compressors, air...
U.S. Winter instruments

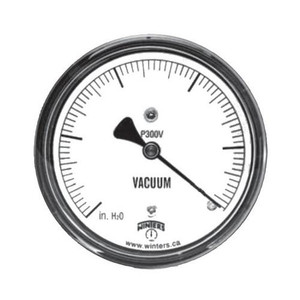

Winters LOW PRESS 4" 0-32" H20 VAC 1/4" SS BACK PLP4241V
