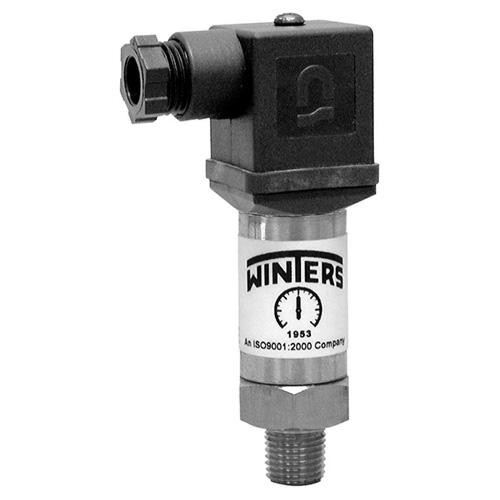

Winters LLP TRANSMITTER 1 PSI. LLP0001
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters LLP TRANSMITTER 1 PSI. LLP0001
$903.33
- Brand
- U.S. Winter instruments
- SKU:
- LLP0001
- UPC:
- 6.28312E+11
LLP 0/1 PSI Low Pressure Transmitter
Features:
- Compact stainless steel construction with stainless steel sensor
- Available in in/H2O to 25 PSI
- Wide range of mechanical and electrical connections
- ±0.5% accuracy
- NEMA 4x and 6P / IP65, IP67 and IP68
- CE and RoHS compliant
- Customizable
- 1 year warranty
Applications:
- Developed for low pressure applications in general industry and OEM applications
| Range | 0/1 PSI (28" H2O) |
| Over-pressure | 15 PSI |
| Burst Pressure | 22 PSI |
| Output Signal | Standard 2-wire: 4-20 mA / Vs = 8-32 Vdc Optional 3-wire: 0-10 V / Vs = 14-30 Vdc Optional 3-wire ratiometric: Vsig = 0.5-4.5 V / Vs = 5 ± 0.5 Vdc |
| Accuracy | ±0.5% FSO |
| Permissible Load | 2-wire: Rmax = [(Vs - Vs min) / 0.02] Ohm 3-wire: Rmin = 10 kOhm |
| Influence Effects | Supply: 0.05% FSO / 10 V Load: 0.05% FSO / kOhm |
| Response Time | 2-wire: <10 ms3-wire: < 3 ms |
| Measuring Rate | 1 kHz |
| Thermal Error | <±0.3% FSO / 10K in compensated range 32°F to 158°F (0°C to 70°C) |
| Permissible Temperatures | Medium: -13°F to 185°F (-25°C to 85°C) Electronics environment: -13°F to 185°F (-25°C to 85°C) Storage: -40°F to 185°F (-40°C to 85°C) |
| Short-circuit Protection | Permanent 3-wire ratiometric: None |
| Reverse Polarity Protection | No damage. No function. |
| Electromagnetic Protection | Emission and immunity according to EN 61326 |
| Stability | Vibration: 10 g, 25 Hz to 2 kHz according to DIN EN 60068-2-6 Shock: 100 g / 1 ms according to DIN EN 60068-2-27 |
| Pressure Port / Housing | 304 SS |
| Wetted Parts | Seals: FKM (Viton®standard) Diaphragm: 316L SS |
| Weight | 120 g |
| Current Consumption | 2-wire: 25 mA max 3-wire voltage: 5 mA (short-circuit current 20 mA) 3-wire ratiometric: 1.5 mA |
| CE Conformity | EMC directive: 2004/108/EC |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters LLP TRANSMITTER 15 PSI. LLP0015
$659.52
LLP 0/15 PSI Low Pressure TransmitterFeatures:Compact stainless steel construction with stainless steel sensorAvailable in in/H2O to 25 PSIWide range of mechanical and electrical connections±0.5%...
U.S. Winter instruments

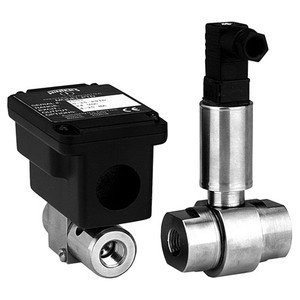

Winters LTD SERIES TRANSMITTER 0-1 PSI. LTDB1
