Winters LM7 TRANSMITTER 0/300 PSI AS CABLE MATERIAL AND LENGTH VARIES, PLEASE CONTACT WINTERS FOR A COMPLETE PRODUCT QUOTATION. LM7300
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters LM7 TRANSMITTER 0/300 PSI AS CABLE MATERIAL AND LENGTH VARIES, PLEASE CONTACT WINTERS FOR A COMPLETE PRODUCT QUOTATION. LM7300
$1,613.87
- Brand
- U.S. Winter instruments
- SKU:
- LM7300
Winters, LM7300, LM7 0/300 PSI General Purpose Submersible Pressure Transmitter
Applications:
- Appropriate for all level and depth measurement applications including open tanks, ground water monitoring, sewage and water treatment facilities
Description & Features:
- Designed for continuous level measurement in water or waste water (thin film)
- Good linearity for long term stability
- Available ranges up to 300 psi
- Wide range of mechanical and electrical connections
- +/-0.5% accuracy
- NEMA 6P / IP68. Approved for outdoor use
- Customizable
- RoHS compliant
- 1 year warranty
| Output Signal | Standard 2-wire: 4-20 mA / Vs = 8-32 VdcOptional 3-wire: 0-20 mA / Vs = 14-30 Vdc 0-10 V / Vs = 14-30 Vdc |
| Accuracy | ?+/-0.5% FSO |
| Permissible Load | Current 2-wire: Rmax = [(Vs - Vs min) / 0.02] OhmCurrent 3-wire: Rmax = 500 OhmVoltage 3-wire: Rmin = 10 kOhm |
| Influence Effects | Supply: 0.05% FSO / 10 VLoad: 0.05% FSO / kOhm |
| Response Time | ?10 ms |
| Thermal Error | ?+/-0.2% FSO / 10K |
| PermissibleTemperatures | Medium: 14°F to 158°F (-10°C to 70°C)Storage: -13°F to 158°F (-25°C to 70°C) |
| Short Circuit Protection | Permanent |
| Reverse Polarity Protection | No damage. No function. |
| Electromagnetic Protection | Emission and immunity according to EN 61326 |
| Connecting Cables | Cable capacitance: Signal line/shield and signal line/signal line: 160 pF/mCable inductance: Signal line/shield and signal line/signal line: 1 ?H/m |
| Electrical Connection | Cable with sheath material: PVC grey, PUR black, FEP black |
| Pollution Degree | 4, electrical equipment for outdoor use |
| Housing | 316L SS |
| Seals | FKM (Viton, Kalrez) / EPDM |
| Diaphragm | Ceramic AI2O396% |
| Protection Cap | POM |
| Current Consumption | Current: 25 mA maxVoltage: 7 mA max |
| Weight | 250 g (without cable) |
| Enclosure Rating | NEMA 6P / IP68 |
| CE Conformity | EMC directive: 2004/108/EC |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments

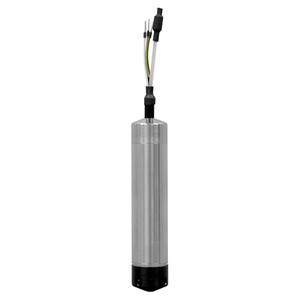

Winters LM7 TRANSMITTER 0/160 PSI AS CABLE MATERIAL AND LENGTH VARIES, PLEASE CONTACT WINTERS FOR A COMPLETE PRODUCT QUOTATION. LM7160
