Winters LOW PRESS 4" 0-55" H20 VAC 1/4" SS BACK PLP4242V
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters LOW PRESS 4" 0-55" H20 VAC 1/4" SS BACK PLP4242V
$678.48
- Brand
- U.S. Winter instruments
- SKU:
- PLP4242V
- UPC:
- 6.28311E+11

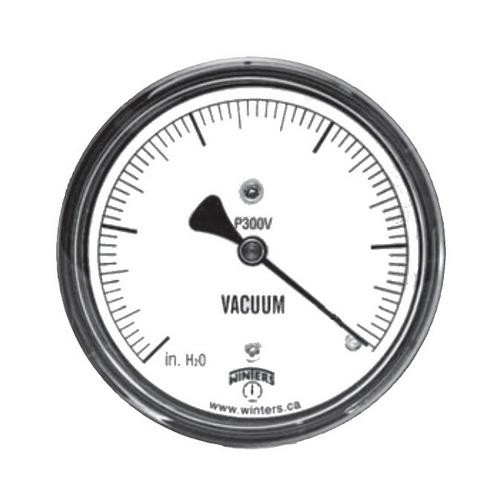

Winters, PLP4242V, PLP 4", 0/55" Water/Vac, 1/4" SS Back Low Pressure Gauge
Features:
- Highly accurate reading of low pressures
- Stainless steel wetted parts
- Ranges from 15" H2O/oz to 10 PSI
- Overpressure protection on some models (OP)
- ASME B 40.100 compliant
- CRN registered
Applications:
- Suitable for measuring gaseous media both corrosive and non-corrosive
- Used to measure natural gas pressure as well as air flow indication and leak detection
- Vacuum pumps, air compressors, air fi lters, gas burners, vacuum ovens, suction regulators and respirators
| Pressure Range | 0-55" Water/Vac |
| Dial | 4" (100mm) |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | No ring |
| Socket | AISI 316 SS |
| Connection | 1/4" Back (CB) |
| Diaphragm Element | AISI 316 SS |
| Movement | AISI 316 SS |
| Pointer | Aluminum, anodized black |
| Welding | TIG |
| Working Pressure | 75% of full scale value |
| Over-pressure Limit | 30% of full scale value |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | ?1.6% of full scale |
| Enclosure Rating | IP52 |
