Winters LXP SERIES TRANSMITTER, ALL SS, 0/5000 PSI, 4/20MA, 6'6" CABLE, 1/2"NPT. LXPS6TN2
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters LXP SERIES TRANSMITTER, ALL SS, 0/5000 PSI, 4/20MA, 6'6" CABLE, 1/2"NPT. LXPS6TN2
$1,236.30
- Brand
- U.S. Winter instruments
- SKU:
- LXPS6TN2
- UPC:
- 6.28312E+11
Winters LXPS6TN2 Offers
Features
- V AC to 10,000 psi pressure range
- Explosion proof enclosure
- Rugged stainless steel construction with diffused silicone sensor
- Built in high pressure snubber (2,000 psi and above)
- NEMA 4X, 7 and 9
- ?0.25% accuracy
- cULus approved for hazardous locations
- Single seal ANSI compliant up to 6000 psi
- CRN registered
Applications
- Oil and gas
- Mining and water treatment industries
- Petrochemical plants
- Pipelines
- Fuel transfer systems
- Power plants
Winters LXPS6TN2 Specifications
| Range | 0 to 5000 psi |
| Proof Pressure | 10,000 psi |
| Output Signal | Standard 2-wire: 4-20 mA / Vs = 12 to 28 V DC Optional 3-wire: 0.5 to 5.5 V DC / Vs = 9 to 28 V DC 3-wire: 1-11 V DC/ Vs = 14 to 28 V DC |
| Accuracy | ?0.25% BFSL / ?0.5% for vacuum only |
| Temperature | Operating: -40to 160?F (-40 to 71?C) Compensating: 30 to 160?F (-1 to 71?C) Storage: -40 to 185?F (-40 to 85?C) |
| Temperature Shift | 0.0125% per ?F over compensated range 75?F (24?C) reference |
| Vibration | 15 g / 10 to 2000 Hz (MIL-STD-202) |
| Shock | 50 g / 11 ms (MIL-STD-202, M213, Cond. G) |
| Pressure Connection | ?" NPTM, ?" NPTM optional |
| Housing | 304 SS |
| Wetted Parts | 316 SS diaphragm and 17-4PH SS process connection |
| Proof Pressure | 2 x rated pressure or 13,000 psi max |
| Current Supply | 3 mA maximum (no load) |
| Protection | EMI, ESD and RFI, reverse polarity protected |
| Approval | cULus approved as telemetering equipment for use in hazardous locations (UL File E146589, WYMV, WYMV7) as follows: Class I, Div. 1, Groups A, B, C and D Class I, Div. 1, Groups A, B, C and D CRN registered |
| Weight | 7.4 oz (210 g): =1000 psi 9.9 oz (281 g): =2000 psi |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters LXP SERIES TRANSMITTER, ALL SS, 0/5000 PSI, 4/20MA, 6'6" CABLE, 1/4"NPT. LXPS6TN4
$1,236.30
Winters, LXPS6TN4, LXP 0/5000 PSI 4/20mA 1/4" NPT Stainless Steel Explosion Proof TransmitterDescription & Features:Vac to 10,000 psi pressure rangeExplosion proof enclosureRugged stainless steel...
U.S. Winter instruments
Winters LXP SERIES TRANSMITTER, ALL SS, 0/60 PSI, 4/20MA, 6'6" CABLE, 1/2"NPT. LXPS60N2
$976.02
Winters, LXPS60N2, LXP 0/60 PSI, 4/20 mA, 1/2" NPT Explosion Proof TransmitterFeatures:Vac to 10,000 PSI pressure rangeExplosion proof enclosureRugged stainless steel constructionBuilt in high...
U.S. Winter instruments
Winters LXP SERIES TRANSMITTER, ALL SS, 0/3000 PSI, 4/20MA, 6'6" CABLE, 1/2"NPT. LXPS4TN2
$976.02
Winters, LXPS4TN2, LXP 0/3,000 PSI, 4/20 mA, 1/2" NPT Explosion Proof TransmitterFeatures:Vac to 10,000 PSI pressure rangeExplosion proof enclosureRugged stainless steel constructionBuilt in high...
U.S. Winter instruments

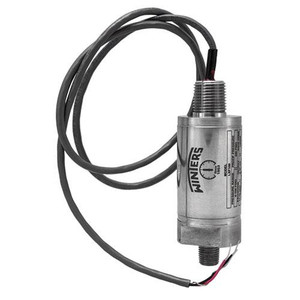

Winters LXP SERIES TRANSMITTER, ALL SS, 0/500 PSI, 4/20MA, 6'6" CABLE, 1/2"NPT. LXPS5HN2
