Winters PCT-LF SERIES (LEAD-FREE) 4.5" 0/300 PSI/KPA 1/4" NPT LM PCT326LF
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters PCT-LF SERIES (LEAD-FREE) 4.5" 0/300 PSI/KPA 1/4" NPT LM PCT326LF
$51.61
- Brand
- U.S. Winter instruments
- SKU:
- PCT326LF
- UPC:
- 6.28E+11
- Availability:
- In Stock
Winters, PCT326LF, PCT-LF 4.5" Lead Free Contractor Gauge, 0/300 psi/kPa, 1/4" NPT.
Features:
- Economical 4.5" (115mm) stainless steel case gauge
- Lead free brass wetted parts
- ?1% accuracy
- Zero adjustment screw
- 1/4" NPT
- Restricted orifice
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
Applications:
- Most commercial air, water and steam services (with syphon)
- Lead free version for potable water systems
| Scale value | 0/300 psi/kPa |
| Dial | 4.5" (115mm) white aluminum with black and red markings |
| Case | 304 SS |
| Lens | Acrylic |
| Ring | 304 SS |
| Socket | Lead free brass, NSF-61-372 certified |
| Connection | 1/4"; NPT standard |
| Bourdon Tube Brass | Phosphor bronze |
| Movement | Lead free brass, NSF-61-372 certified |
| Pointer | Aluminum, anodized black, recalibrator screw |
| Welding | Silver solder |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40?F to 200?F (-40?C to 93?C) |
| Accuracy | ?1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP52 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters PCT-LF SERIES (LEAD-FREE) 4.5" 30"/0/300 PSI/KPA 1/4" NPT LM PCT334LF
$54.20
PCT-LF SERIES (LEAD-FREE) 4.5" 30"/0/300 PSI/KPA 1/4" NPT LM
U.S. Winter instruments
Winters PCT-LF SERIES (LEAD-FREE) 4.5" 0/400 PSI/KPA 1/4" NPT LM PCT327LF
$51.61
Winters, PCT327LF, PCT-LF 4.5" Lead Free Contractor Gauge, 0/400 psi/kPa, 1/4" NPT.Features: Economical 4.5" (115mm) stainless steel case gaugeLead free brass wetted parts?1% accuracyZero adjustment...
U.S. Winter instruments
Winters PCT-LF SERIES (LEAD-FREE) 4.5" 0/15 PSI/KPA 1/4" NPT LM PCT319LF
$51.61
Winters PCT319LF OffersFeatures ?1% accuracy Zero adjustment screw 1/4" NPT Restricted orifice ASME B40.100 compliant CRN registered 5 year warranty Applications Commercial air Water and steam...
U.S. Winter instruments
Winters PCT-LF SERIES (LEAD-FREE) 4.5" 0/200 PSI/KPA 1/4" NPT LM PCT325LF
$51.61
Winters PCT325LF OffersFeatures ?1% accuracy Zero adjustment screw 1/4" NPT Restricted orifice ASME B40.100 compliant CRN registered 5 year warranty Applications Commercial air Water and steam...
U.S. Winter instruments

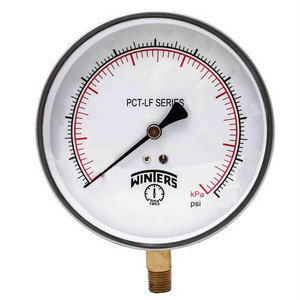

Winters PCT-LF SERIES (LEAD-FREE) 4.5" 0/60 PSI/KPA 1/4" NPT LM PCT322LF
