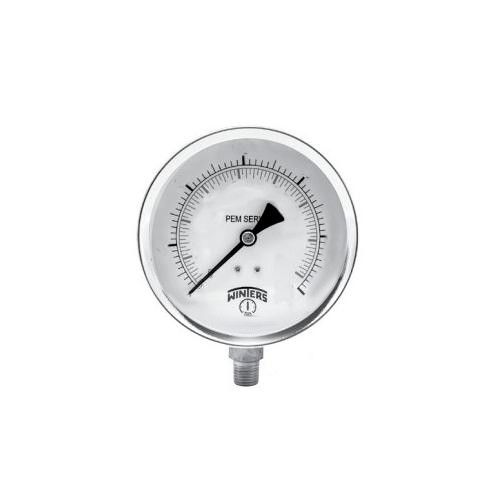

Winters PEM-LF SERIES (LEAD-FREE) 2.5" 0/300 PSI/KPA 1/4" NPT LM PEM217LF
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters PEM-LF SERIES (LEAD-FREE) 2.5" 0/300 PSI/KPA 1/4" NPT LM PEM217LF
$25.45
- Brand
- U.S. Winter instruments
- SKU:
- PEM217LF
- UPC:
- 6.28E+11
Description:
Features:
- Most economical, all-purpose pressure gauge
- 2.5" (63mm) size
- Friction bezel ring
- Black steel case
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
Applications:
- General purpose gauge for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors, OEM
- Lead free version for potable water systems
- Suitable for non-clogging and non-corroding media
Specification
| Dial size | 2.5" (63mm) |
| Connection | 1/4" Bottom |
| Lens | Acrylic |
| Ring | Steel, chrome plated |
| Socket | Lead free brass NSF-61-372 certified |
| Bourdon Tube | Lead free phosphor bronze, NSF-61-372 certified |
| Movement | SS |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | ?3-2-3% ANSI/ASME Grade B |
