Winters PFP SERIES 4.5" 0/160 PSI/KPA SS 1/2" LBM 1% ACC PFP462

(No reviews yet) Write a Review

$327.04

Brand: U.S. Winter instruments
SKU:: PFP462
UPC:: 6.28311E+11

Current Stock:

Quantity:

Adding to cart… The item has been added

Description
0 Reviews

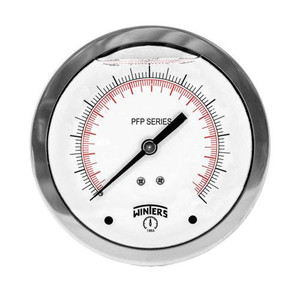

Winters-Instruments, PFP462, PFP Premium Stainless Steel Liquid Filled Gauge, Dual Scale, Dial 4.5", 1/2" Back, SS, 0/160 psi/kPa

Outdoor and severe ambient and process conditions. Use where harmful vibration and pulsation are present. Hydraulic equipment, oil field equipment, pumps, compressors and process industries.

Features:

Liquid filled stainless steel case protects against vibration and pulsation
Bayonet ring
Highly accurate
Back mounted
Under and overload stops
Ventable plug on 4.5" stainless steel back mount
Stainless steel
ASME B40.100 compliant

Pressure Range	0/160 psi/kPa
Dial	4.5" (115mm) white aluminum with black and red markings
Case	AISI 304 SS
Lens	Polycarbonate
Ring	AISI 304 SS
Socket	316L SS. Welded one-piece socket
Connection	1/2" NPT
Bourdon Tube	316L SS, drawn seamless
Movement	304 SS (under and overload stops 4" to 6")
Pointer	Aluminum, anodized black, micrometer adjustable
Welding	Laser welded socket to case
Fill Liquid	Glycerin
Over-pressure Limit	25%
Socket Gasket	Welded (no gasket)
Fill Plug	Buna N (silicone rubber option)
Lens Ring Gasket	Buna N (silicone rubber option)
Working Pressure	Maximum 75% of full scale value
Ambient Temperature	Dry: -40 deg F to 250 deg F (-40 deg C to 120 deg C) Glycerin Filled: -4 deg F to 150 deg F (-20 deg C to 65 deg C)
Process Temperature	-40 deg F to 250 deg F (-40 deg C to 120 deg C)
Accuracy	?1% ANSI/ASME Grade 1A
Enclosure Rating	NEMA 4X/IP66, EN60529-1 (IEC529-1)
