Winters PFQ-LF SERIES (LEAD-FREE) 4" 0/30" VAC/KPA 1/2" NPT CBM PFQ1285LF
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters PFQ-LF SERIES (LEAD-FREE) 4" 0/30" VAC/KPA 1/2" NPT CBM PFQ1285LF
$142.91
- Brand
- U.S. Winter instruments
- SKU:
- PFQ1285LF
- UPC:
- 6.28E+11
Description
Features with all optional accessories:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
- Crimp-On bezel
- ASME B40.100 compliant
- CRN registered
- Lead free version NSF-61-372 certified
Applications:
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
Specification
| Dial | 4" (100mm) |
| Scale Order | Dual |
| Connection | 1/2" Bottom |
| Range | 30" Hg VAC/KPA |
| Scale | Single |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | lead free brass with restricted orifice NSF-61-372 certified |
| Bourdon Tube | Phosphor bronze C or coil shaped |
| Movement | Lead free brass, NSF-61-372 certified |
| Pointer | Anodized black aluminum |
| Over-pressure Limit | 25% for pressures up to 1,450 psi (9,998 kPa), 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | 75% of full scale value |
| Ambient/Process Temperature | Dry: -40?F to 200?F (-40?C to 93?C) Glycerin Filled: -4?F to 150?F (-20?C to 65?C) |
| Accuracy | ?1.5% of full scale value |
| Enclosure Rating | IP65 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters PFQ-LF SERIES (LEAD-FREE) 4" 0/30" VAC/KPA 1/4" NPT CBM PFQ730LF
$142.91
Description:Winters, PFQ730LF, PFQ Stainless Steel Liquid Filled Gauge, Dial 4", 1/4" Back, Lead Free Brass, 30" Hg Vac/kPaIdeal for pumps, compressors, hydraulic presses, machinery, pneumatic...
U.S. Winter instruments

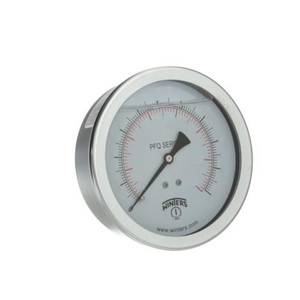

Winters PFQ-LF SERIES (LEAD-FREE) 2.5" 0/30" VAC/KPA 1/4" NPT CBM PFQ900LF
