Winters PFQ-LF SERIES (LEAD-FREE) 4" 0/5000 PSI/KPA 1/4" NPT LM PFQ728LF
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters PFQ-LF SERIES (LEAD-FREE) 4" 0/5000 PSI/KPA 1/4" NPT LM PFQ728LF
$129.91
- Brand
- U.S. Winter instruments
- SKU:
- PFQ728LF
- UPC:
- 6.28311E+11

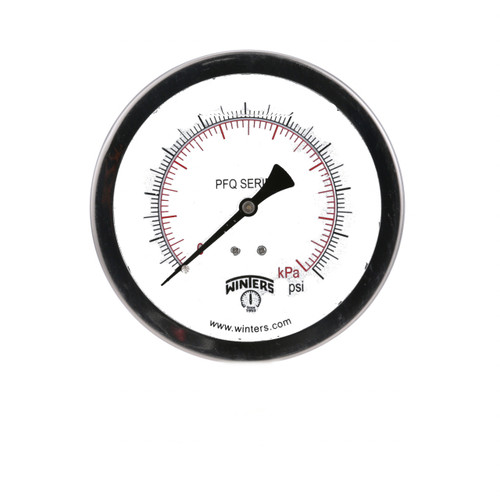

Winters, PFQ728LF, PFQ Stainless Steel Liquid Filled Gauge, Dial 4", 1/4" Bottom, Lead Free Brass, 0/5,000 psi/kPa
Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments. Use where harmful vibration and pulsation are present.
Features:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled
- Brass internals
- Crimp-On bezel
- Dual scale (psi/kPa)
- CRN registered
| Pressure Range | 0/5,000 psi/kPa |
| Dial | 4" (100mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Connection | 1/4" NPT |
| Fill Liquid | Glycerin |
| Bourdon Tube | Phosphor bronze |
| Movement | Lead free brass |
| Pointer | Aluminum, anodized black |
| Welding | Silver alloy |
| Over-pressure Limit | 15% |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient / Process Temperature |
|
| Accuracy | +/-1.5% of full scale value |
| Enclosure Rating | IP65 |
