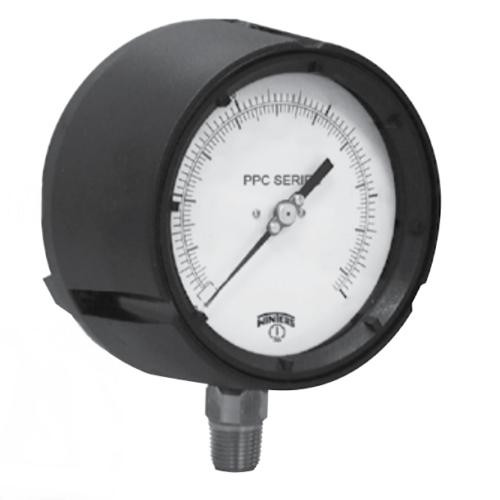

Winters PROCESS 0-300 PSI/KPA 1/4" NPT ST/ST PPC5047
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters PROCESS 0-300 PSI/KPA 1/4" NPT ST/ST PPC5047
$203.43
- Brand
- U.S. Winter instruments
- SKU:
- PPC5047
- UPC:
- 6.28E+11
Winters PPC5047 Offers
Features
- Solid phenolic front and polypropylene pressure relief back safety case
- Field liquid-fillable (bottom connection only)
- Stainless steel full rotary movement for longer life
- Micrometer adjustable pointer for ease in calibration
- Under and overload stops
- Restricted orifice standard on dual scale (optional on single scale)
- 0.5% accuracy
- ASME B40.100 compliant
- RoHS compliant (SS and Monel? internals only)
- CRN registered
- 5 year warranty
Applications
- Used where operator safety is a must
- Ideally suited for process, chemical and petroleum industries
- Highly corrosive media
Winters PPC5047 Specifications
| Dial | 4.5" (115mm) white aluminum with black and red markings |
| Case | Black phenolic with pressure relief back, solid front, integral back flange |
| Solid Wall | Phenolic |
| Pressure Relief Back | Polypropylene |
| Window | Polycarbonate |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Socket | 316L SS |
| Connection | 1/4" NPT - bottom |
| Process Temperature | -40 to 250?F (-40 to 120?C) |
| Enclosure Rating | IP65 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments

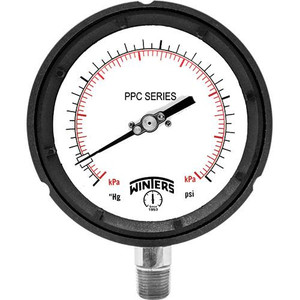

Winters PROCESS 30"-0-300 PSI/KPA 1/4" NPT ST/ST PPC5136
