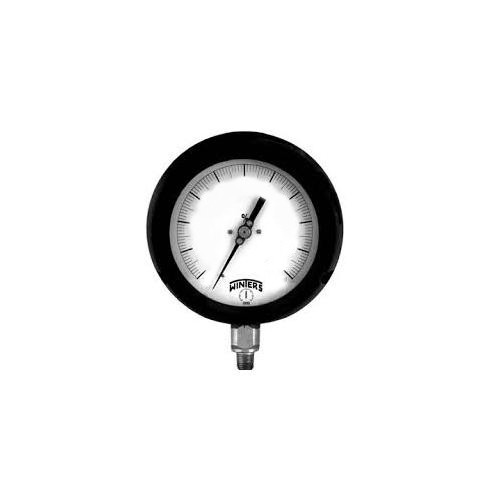

Winters PROCESS 0-600 PSI 1/2" NPT ST/ST PPC5069R1
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters PROCESS 0-600 PSI 1/2" NPT ST/ST PPC5069R1
$203.43
- Brand
- U.S. Winter instruments
- SKU:
- PPC5069R1
- UPC:
- 6.28311E+11
Description
Winters, PPC5069R1, Process Gauge, 4.5", 0/600 psi, 1/2" Bottom
Features:
- Solid phenolic front and polypropylene pressure relief back safety case
- Field liquid-fillable (bottom connection only)
- +/-0.5% accuracy
- Stainless steel full rotary movement for longer life
- Micrometer adjustable pointer for ease in calibration
- Under and overload stops
- 316L stainless steel, brass, Monel wetted parts
- Restricted orifice standard on dual scale (optional on single scale)
- ASME B40.100 compliant
- CRN registered
Applications:
- Ideally suited for process, chemical, petroleum and power industries
- Suitable for non-clogging corrosive media
- Used where operator safety is a requirement
- Processes where pulsation and vibration exist (with liquid filling)
Specification
| Dial | 4.5" |
| Case | Black phenolic with pressure relief back, solid front, integral back flange |
| Solid Wall | Phenolic |
| Pressure Relief Back | Polypropylene |
| Window | Polycarbonate |
| Ring | Phenolic |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Socket | 316L SS |
| Connection | 1/2" NPT, bottom |
| Bourdon Tube | 316L SS, drawn seamless |
| Movement | 304 SS with under and overload stops |
| Gasket Materials | Silicone (FKM option) |
| Welding | TIG |
| Over-pressure Limit | 25% for pressures below 1,500 psi (10,341 kPa) |
| Working Pressure | Maximum 75% of full scale value |
| Process Temperature | -40?F to 250?F (-40?C to 120?C) |
| Ambient/Process Temperature | Dry: -40?F to 200?F (-40?C to 93?C) Glycerin Filled: -4?F to 150?F (-20?C to 65?C) |
| Accuracy | +/-0.5% ANSI/ASME Grade 2A |
| Enclosure Rating | IP65 |
