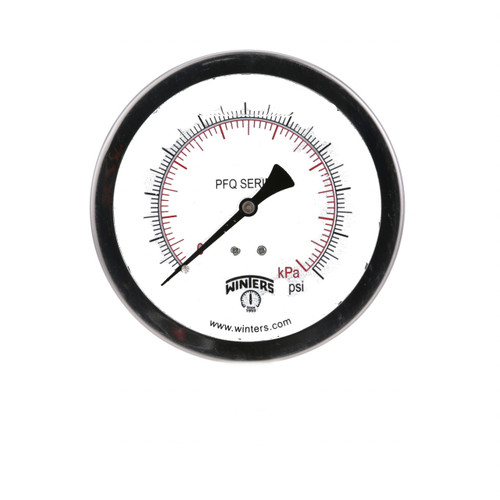

Winters QUALITY FILLED 4" 0-1000 PSI 1/2" BACK PFQ747R1
$109.74
- Brand
- U.S. Winter instruments
- SKU:
- PFQ747R1
- UPC:
- 6.28311E+11
Winters, PFQ747R1, PFQ Stainless Steel Liquid Filled Gauge, Single Scale, Dial 4", 1/2" Back, Brass Internals, 0/1,000 psi
Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments. Use where harmful vibration and pulsation are present.
Features:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled
- Brass internals
- Crimp-On bezel
- Single (psi) scale
- CRN registered
Pressure Range | 0/1,000 psi |
Dial | 4" (100mm) white aluminum with black and red markings |
Case | AISI 304 SS |
Lens | Polycarbonate |
Ring | AISI 304 SS, Crimp-On |
Connection | 1/2" NPT |
Fill Liquid | Glycerin |
Bourdon Tube | Phosphor bronze |
Movement | OT 59 brass |
Pointer | Aluminum, anodized black |
Welding | Silver alloy |
Over-pressure Limit | 25% |
Socket Gasket | Buna N for two-piece internal socket seal |
Fill Plug | Buna N |
Lens Ring Gasket | Silicone rubber |
Working Pressure | Maximum 75% of full scale value |
Ambient / Process Temperature |
|
Accuracy | +/-1.5% of full scale value |
Enclosure Rating | IP65 |
