Winters QUALITY FILLED 4 0-6000 PSI/KPA 1/4" BACK PFQ246
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters QUALITY FILLED 4 0-6000 PSI/KPA 1/4" BACK PFQ246
$120.72
- Brand
- U.S. Winter instruments
- SKU:
- PFQ246
- UPC:
- 6.28311E+11

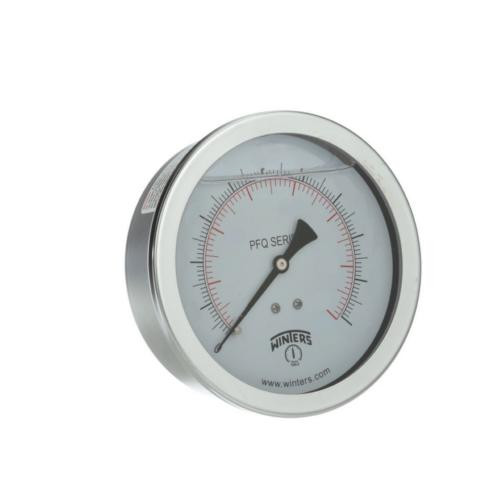

Winters, PFQ246, Stainless Steel Liquid Filled Pressure Gauge, 4", 0/6000 psi/kPa, 1/4" Back
Features with all optional accessories:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled standard
- Restricted orifice standard on dual scale
- Crimp-On bezel
- dual scale (psi/kPa)/(psi/bar)
- Optional U-Clamps and front flanges
- ASME B40.100 compliant
- CRN registered
Applications:
- Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments
- Use where harmful vibration and pulsation are present
| Dial | 4" |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Socket | OT 58 brass with restricted orifice |
| Connection | 1/4" |
| Fill Liquid | Glycerin |
| Bourdon Tube | Phosphor bronze C or coil shaped |
| Movement | PFQ: OT 59 brass |
| Pointer | Aluminum, anodized black |
| Welding | Silver alloy |
| Over-pressure Limit | 15% for pressures over 1,450 psi (9,998 kPa) |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40?F to 200?F (-40?C to 93?C) Glycerin Filled: -4?F to 150?F (-20?C to 65?C) |
| Accuracy | 4" (100mm): +/-1.5% of full scale value |
| Enclosure Rating | IP65 |
