Winters QUALITY FILLED 4"X1/4" BTM 30"/0/30 PSI PFQ702R1
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters QUALITY FILLED 4"X1/4" BTM 30"/0/30 PSI PFQ702R1
$109.74
- Brand
- U.S. Winter instruments
- SKU:
- PFQ702R1
- UPC:
- 6.28E+11
Description:
Winters, PFQ702R1, PFQ Stainless Steel Liquid Filled Gauge, Single Scale, Dial 4", 1/4" Bottom, Brass Internals, 30"/0/30 psi
Ideal for pumps, compressors, hydraulic presses, machinery, pneumatic equipment and motors in harsh environments. Use where harmful vibration and pulsation are present.
Features:
- Pulsation resistant, liquid filled stainless steel case
- Glycerin filled
- Brass internals
- Crimp-On bezel
- Single (psi) scale
- CRN registered
Specification
| Pressure Range | 30"/0/30 psi |
| Dial | 4" (100mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS, Crimp-On |
| Connection | 1/4" NPT |
| Fill Liquid | Glycerin |
| Bourdon Tube | Phosphor bronze |
| Movement | OT 59 brass |
| Pointer | Aluminum, anodized black |
| Welding | Silver alloy |
| Over-pressure Limit | 25% |
| Socket Gasket | Buna N for two-piece internal socket seal |
| Fill Plug | Buna N |
| Lens Ring Gasket | Silicone rubber |
| Working Pressure | Maximum 75% of full scale value |
| Ambient / Process Temperature |
|
| Accuracy | +/-1.5% of full scale value |
| Enclosure Rating | IP65 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters QUALITY FILLED 4"X1/4" BTM 30"/0/30 PSI/KPA PFQ702
$109.74
Winters, PFQ702, PFQ Stainless Steel Liquid Filled Gauge, Dual Scale, Dial 4", 1/4" Bottom, Brass Internals, 30"/0/30 psi/kPaIdeal for pumps, compressors, hydraulic presses, machinery, pneumatic...
U.S. Winter instruments

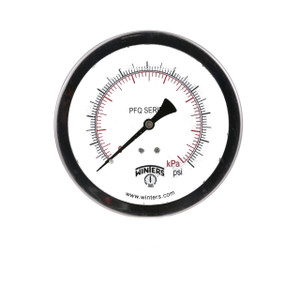

Winters QUALITY FILLED 4"X1/4" BTM 30"/0/15 PSI PFQ701R1
