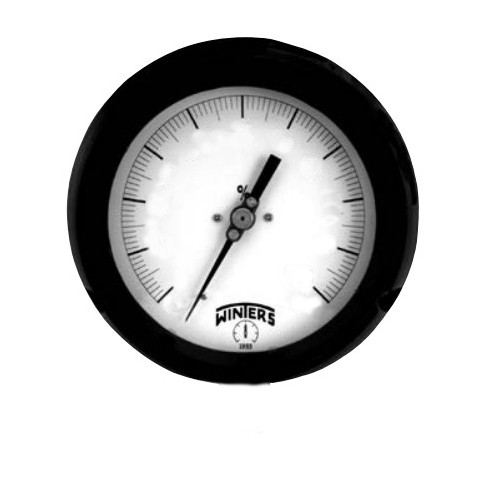

Winters REGULATOR GAUGE 1.5"x1/8" NPT BACK 0/60 PSI/KPA PRL006
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters REGULATOR GAUGE 1.5"x1/8" NPT BACK 0/60 PSI/KPA PRL006
$60.82
- Brand
- U.S. Winter instruments
- SKU:
- PRL006
- UPC:
- 6.28E+11
- Availability:
- In Stock
Features:
- Designed for sour gas applications requiring NACE Standards MR0175-2002
- Glycerin and H2O filled case
- Blow out back plug
- Under and overload stops
- Wetted parts meet all hardness requirements
- ASME B40.100 compliant
- CRN registered
| Dial | 1.5" (40mm) |
| Case | 304 SS |
| Lens | Acrylic, snap-in type |
| Ring | 304 SS, bayonet |
| Socket | 316 SS |
| Connection | 1/8" Back |
| Bourdon Tube | 316 SS |
| Movement | 304 SS |
| Pointer | Aluminum, painted black |
| Over-Pressure Limit | 25% of full scale value |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | ?2.5% of full scale value |
| Enclosure Rating | IP62 |
0 Reviews Hide Reviews Show Reviews
U.S. Winter instruments
Winters REGULATOR GAUGE 1.5"x1/8" NPT BACK 0/160 PSI/KPA PRL008
$60.82
Features:Designed for sour gas applications requiring NACE Standards MR0175-2002Glycerin and H2O filled caseBlow out back plugUnder and overload stopsWetted parts meet all hardness requirementsASME...
U.S. Winter instruments
Winters REGULATOR GAUGE 1.5"x1/8" NPT BACK 0/3,000 PSI/KPA PRL038
$60.25
Description:Features:Small diameter, all stainless steel gaugeFull view snap-in lensASME B40.100 compliantSpecification Dial
U.S. Winter instruments
Winters REGULATOR GAUGE 1.5"x1/8" NPT BACK 0/30 PSI/KPA PRL005
$60.82
Features:Designed for sour gas applications requiring NACE Standards MR0175-2002Glycerin and H2O filled caseBlow out back plugUnder and overload stopsWetted parts meet all hardness requirementsASME...
U.S. Winter instruments
Winters REGULATOR GAUGE 1.5"x1/8" NPT BTM 0/60 PSI/KPA PRL002
$60.25
Features:Designed for sour gas applications requiring NACE Standards MR0175-2002Glycerin and H2O filled caseBlow out back plugUnder and overload stopsWetted parts meet all hardness requirementsASME...
U.S. Winter instruments
Winters REGULATOR GAUGE 1.5"x1/8" NPT BACK 0/3,000 PSI/KPA PRL041
$60.82
Features:Small diameter, all stainless steel gaugeFull view snap-in lensASME B40.100 compliantDial1.5" (40mm)Case304 SSLensAcrylic, snap-in typeSocket316 SS
U.S. Winter instruments
Winters REGULATOR GAUGE 1.5"x1/8" NPT BACK 0/100 PSI/KPA PRL007
$60.82
Description:Features:Designed for sour gas applications requiring NACE Standards MR0175-2002Glycerin and H2O filled caseBlow out back plugUnder and overload stopsWetted parts meet all hardness...
U.S. Winter instruments

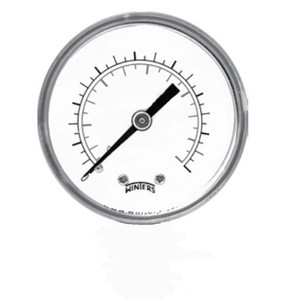

Winters REGULATOR GAUGE 1.5"x1/8" NPT BACK 0/5,000 PSI/KPA PRL039
