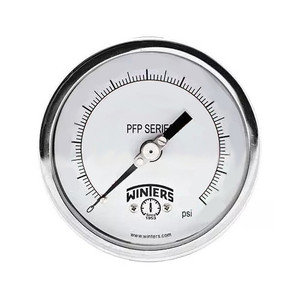

Winters SS 2.5" 0-400 PSI 1/4" NPT BACK PFP881R1
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters SS 2.5" 0-400 PSI 1/4" NPT BACK PFP881R1
$122.55
- Brand
- U.S. Winter instruments
- SKU:
- PFP881R1
- UPC:
- 6.28311E+11
Winters, PFP881R1, PFP Premium Stainless Steel Liquid Filled Gauge, Single Scale, Dial 2.5", 1/4" Back, SS, 0/400 psi
Outdoor and severe ambient and process conditions. Use where harmful vibration and pulsation are present. Hydraulic equipment, oil field equipment, pumps, compressors and process industries.
Features:
- Liquid filled stainless steel case protects against vibration and pulsation
- Bayonet ring
- Highly accurate
- Back mounted
- Under and overload stops
- Ventable plug on 2.5" stainless steel back mount
- Stainless steel
- ASME B40.100 compliant
| Pressure Range | 0/400 psi |
| Dial | 2.5" (63mm) white aluminum with black and red markings |
| Case | AISI 304 SS |
| Lens | Polycarbonate |
| Ring | AISI 304 SS |
| Socket | 316L SS. Welded one-piece socket |
| Connection | 1/4" NPT |
| Bourdon Tube | 316L SS, drawn seamless |
| Movement | 304 SS (under and overload stops 4" to 6") |
| Pointer | Aluminum, anodized black |
| Welding | Laser welded socket to case |
| Fill Liquid | Glycerin |
| Over-pressure Limit | 25% |
| Socket Gasket | Welded (no gasket) |
| Fill Plug | Buna N (silicone rubber option) |
| Lens Ring Gasket | Buna N (silicone rubber option) |
| Working Pressure | Maximum 75% of full scale value |
| Ambient Temperature | Dry: -40degF to 250degF (-40degC to 120degC) Glycerin Filled: -4degF to 150degF (-20degC to 65degC) |
| Process Temperature | -40degF to 250degF (-40degC to 120degC) |
| Accuracy | +/-1.5% of full scale value |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
