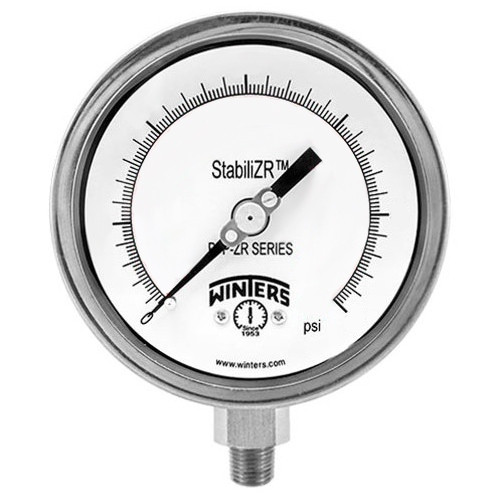

Winters SS 4" 0-200 PSI 1/4" NPT BTM WITH STABILIZR(tm) PFP646ZRR1
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters SS 4" 0-200 PSI 1/4" NPT BTM WITH STABILIZR(tm) PFP646ZRR1
$251.22
- Brand
- U.S. Winter instruments
- SKU:
- PFP646ZRR1
- UPC:
- 6.28311E+11
Winters, PFP646ZRR1, PFP-ZR Premium Stainless Steel StabiliZR Gauge, Single Scale, Dial 4", 1/4" Bottom, 0/200 psi
Outdoor and severe ambient and process conditions. Use where harmful vibration and pulsation are present. Hydraulic equipment, oil field equipment, pumps, compressors and process industries.
Features:
- StabiliZR dampened movement minimizes effects of pulsation and vibration as effectively as liquid filled gauges
- Stainless steel case
- Bottom mounted
- 316L SS wetted parts
- ASME B40.100 compliant
Applications:
- Outdoor and severe ambient and process conditions
- Use where harmful vibration and pulsation are present
- Hydraulic equipment, oil field equipment, pumps, compressors and process industries
| Pressure Range | 0/200 psi |
| Dial | 4" (100mm) white aluminum with black and red markings |
| Case | AISI 304 SS (dry) |
| Lens | Polycarbonate |
| Ring | AISI 304 SS bayonet |
| Socket | 316L SS |
| Connection | 1/4" NPT |
| Bourdon Tube | 316L SS |
| Pointer | Aluminum, anodized black, micrometer adjustable |
| Welding | Laser welded socket to case |
| Over-pressure Limit | 25% |
| Lens Ring Gasket | Buna N |
| Ambient Temperature | -40degF to 250degF (-40degC to 120degC) |
| Process Temperature | -40degF to 250degF (-40degC to 120degC) |
| Working Pressure | Maximum 75% of full scale value |
| Accuracy | +/-1% ANSI/ASME Grade 1A |
| Enclosure Rating | NEMA 4X/IP66, EN60529-1 (IEC529-1) |
