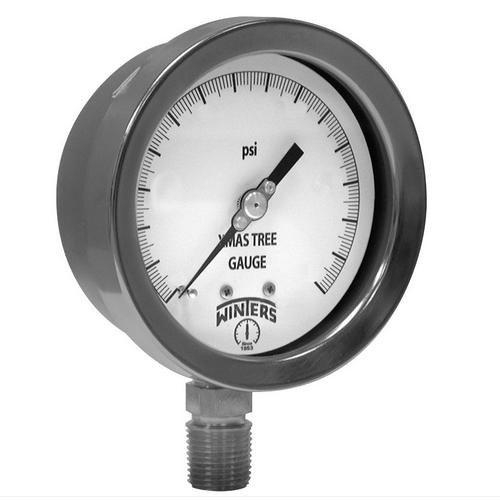

Winters SS 4" XMAS TREE 1/2" BTM 0-3000 PSI PXT1137
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters SS 4" XMAS TREE 1/2" BTM 0-3000 PSI PXT1137
$312.54
- Brand
- U.S. Winter instruments
- SKU:
- PXT1137
- UPC:
- 6.28E+11
Features:
- High quality, heavy duty gauge ideal for corrosive environments
- Stainless steel liquid filled gauge
- 1/2" NPT bottom
- Stainless steel wetted parts
- Heavy duty movement and Bourdon Tube
- Restrictor screw standard
- ASME B40.100 compliant
Applications:
- Outdoor and severe ambient and process conditions
- Where harmful vibration and pulsation are present
- Designed to the specific needs of oil field equipment
| Scale value | 0/3,000 psi |
| Dial | 4" (100mm) white aluminum with black markings |
| Case | AISI 304 SS |
| Lens | Safety glass standard |
| Ring | AISI 304 SS |
| Socket | Welded, 316L SS |
| Connection | 1/2" NPT |
| Bourdon Tube | 316L SS, seamless drawn |
| Movement | 304 SS with under and overload stops |
| Pointed | Aluminum, anodized black, micrometer adjustable |
| Welding | TIG |
| Fill Liquid | Glycerin |
| Over-pressure Limit | 15% of full scale value |
| Gasket Material | EPDM |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -4?F to 150?F (-20?C to 65?C) |
| Accuracy | ?1% ANSI/ASME Grade 1A |
| Enclosure Rating | IP66 per EN60529-1 (IEC529-1) |
