Winters TET SERIES, T/C TYPE J, ALUM HEAD, GALV EXT, 400MM TET11400
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters TET SERIES, T/C TYPE J, ALUM HEAD, GALV EXT, 400MM TET11400
$961.21
- Brand
- U.S. Winter instruments
- SKU:
- TET11400
- UPC:
- 6.28312E+11
Winters, TET11400, TET 16" (400mm) J-Type ATEX Enclosure Galvanized Carbon Steel

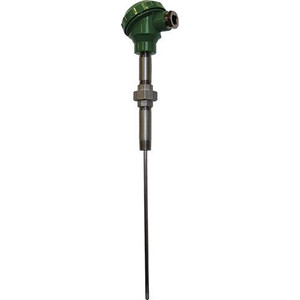

TET 16" (400mm) J-Type ATEX Enclosure Galvanized Carbon Steel Industrial Thermocouple
Features:
- Type J thermocouple sensors offering a wide temperature range; other types available upon request
- Light weight aluminum connection enclosure
- Terminal connections standard
- 316 SS sheath material
- ATEX rated enclosure available
- Multi-point and surface mount sensors available
- Available with or without 316 SS thermowells
- 1 year warranty
Applications:
- Refineries, petrochemical plants, gas-to-liquid (GTL) processes, storage tanks, low density polyethylene, processes, power plants, paper production plants, kilns, food & beverage, etc..
| Sensor Length | 100mm |
| Head | Aluminum (standard) or stainless steel |
| Element | Type J |
| Output Signal | 2-wire terminal block (standard), 4-20mA transmitter available |
| Accuracy | ?0.4% Class 1 |
| Temperature Range | -328?F to 1,382?F (-200?C to 750?C) |
| Extension Material | Galvanized carbon steel |
| Sheath Material | 316 SS |
| Pressure Rating | 7,000 PSI (48,263 kPa) maximum |
| Process Connection | 1/2" NPTM (3/4" NPTM with well) |
| Conduit Connection | 1/2" NPTF |
| Enclosure Rating | ATEX ia |
