Winters WELDING GAUGE 1.5" 0-60 PSI/KPA 1/4" BTM PWL2621
(No reviews yet)
Write a Review
Write a Review
U.S. Winter instruments
Winters WELDING GAUGE 1.5" 0-60 PSI/KPA 1/4" BTM PWL2621
$42.38
- Brand
- U.S. Winter instruments
- SKU:
- PWL2621
- UPC:
- 6.28E+11

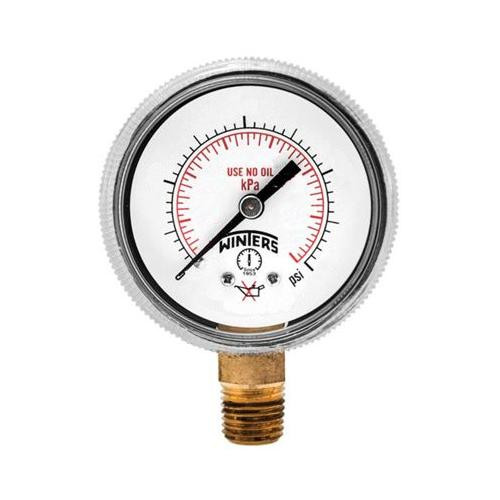

Winters, PWL2621, PWL Welding Gauge, 1.5" Dial, 1/8" Bottom Connection, 0/60 psi/kPa.
Features:
- Economical, non-sparking brass case gauge
- "USE NO OIL" on dial
- Brass socket
- Threaded-on polycarbonate lens
- ASME B40.100 compliant
- CRN registered
Applications:
- Welding tank regulators or manifolds, beverage dispensing regulators and other pressurized tanks
- Used on the down stream side of a regulator and high pressure of cylinder gases
| Scale value | 0/60 psi/kPa |
| Dial | 1.5" (40mm) white aluminum with black and red markings |
| Case | Brass, polished |
| Lens | Polycarbonate, threaded |
| Socket | Brass |
| Connection | 1/8" NPT bottom |
| Bourdon Tube | Phosphor bronze |
| Movement | Brass |
| Pointed | Aluminum, painted black |
| Welding | Silver alloy |
| Over-pressure Limit | 25% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | -40?F to 150?F (-40?C to 65?C) |
| Accuracy | ?3-2-3% ANSI/ASME Grade B |
| Enclosure Rating | IP52 |
