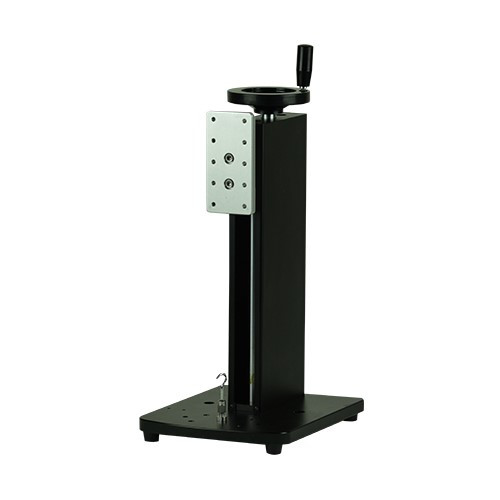

Shimpo FGS-250W Hand Wheel Operated Test Stand, 250 lb (125 kg) Capacity, Vertical or Horizontal Operation
- Brand
- Shimpo Instruments
- SKU:
- FGS-250W
- Availability:
- In Stock
Description
FGS-250W, Test Stand
Includes:
- Test Stand (1)
- Handle of Hand Wheel (1)
- Adapter Screw (M6) (1)
- Screw M4 x 16 (for force gauge) (6)
Features:
- Flexible Vertical or Horizontal operation
- Compact footprint & lightweight enables usage in most locations
- Fine movement from the top-mounted wheel aids in precision testing
- 250 lbf (125 kg) maximum testing capacity
- Digital Scale kit available for high resolution movement recording
The FGS-250W is specifically designed for tensile and compressive force testing and destructive or failure testing for research applications in a multitude of industries.The FGS-250W movement is created from a trapezoidal screw drive with integral nut. Combined with its top-mounted wheel that smoothly turns with minimal effort, fine, stable resolution is achieved during operation.
The FGS-250W offers dual functionality by being able to be used in either the vertical or horizontal positions with no added equipment required. Simply lay unit on its back and level with the adjustment screw and you now can run horizontal tests. The FGS-250Ws compact footprint and lightweight frame enables ease of movement and usage in a myriad of locations.
Specification
Capacity | Up to 250 lbf (125 kg); 143 lbf (65 kg) with optional Tensile frame (sold separatly) |
Travel | 0.12" (3 mm)/turn |
Stroke | 9" (230 mm) max.; 10.24" (260 mm) max. with Tensile Frame kit.(sold separatly) |
Dimensions | 9.8 x 7.7 x 17.5" (250 x 196 x 445 mm) |
Weight | 15.4 lb (7 kg) |
