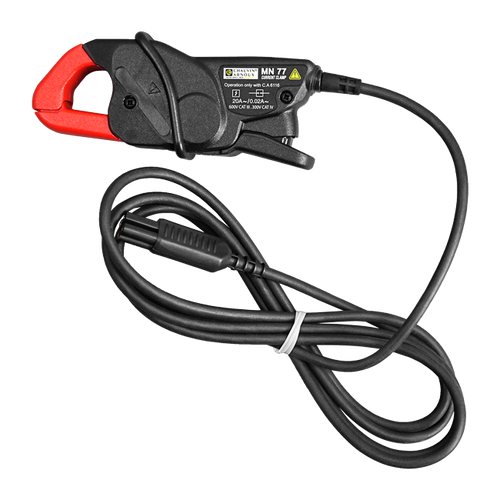

AEMC AC Current Probe Model MN77

$285.00
SKU:
MN77
Brand:
Quantity:

Product Description

AEMC AC Current Probe Model MN77 The AC Current Probe Model MN77 features a measurement range of 5mA to 20A, with a transformation ratio of 1000:1. Its maximum clamping diameter is 0.78" (20mm). The probe includes a 6.5' (2m) lead with proprietary CA connector. The Model MN77 is designed for use with Multi-Function Installation Testers Models C.A 6116/6116N, and C.A 6117. Meter Compatibility C.A 6116N, C.A 6117 Maximum Clamping Diameter 0.78" (20mm) Current Range 20A Measurement Range 5mA to 20A Transformation Ratio 1000:1 Output 6.5ft (2m) lead with proprietary CA connector Operating Temperature 32° to +113°F  (0° to +45°C); 90% RH Storage Temperature -40° to +158°F  (-40° to +70°C) Dimensions  (HxWxD) 5.31 x 2.01 x 1.18” (135 x 51 x 30mm) Weight 6.35 oz (180g) Pollution Degree 2 Ingress Protection IP 40, IP 30 with jaws open Safety Compliance IEC 61010-2-032, EN 61010-1, EN61010-031 300V CAT IV,600V CAT III
