AEMC AmpFlex® Flexible Sensors 1000-24-2-1


Product Description

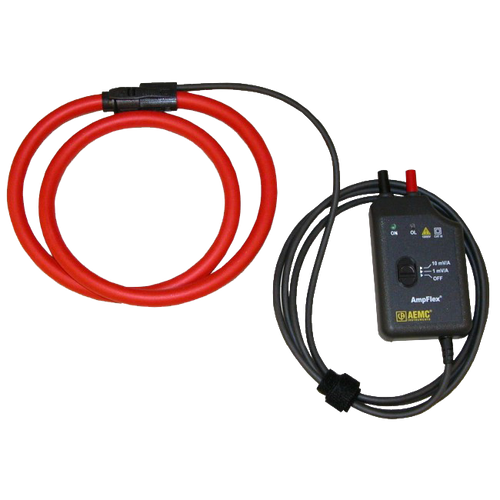

AEMC AmpFlex® Flexible Sensors 1000-24-2-1  The AmpFlex® is an AC current sensor composed of a flexible Rogowski coil and an electronic module. The sensor permits measurements on conductors where standard clamp-on probes cannot be used. In particular, it can be installed in tight spaces, around cable bundles, around wide or large bus bars, or even wrapped around irregular shapes. The Shape Memory feature enables the user to pre-shape the sensor before inserting it between or around conductors. This feature facilitates positioning the sensor around the conductor, enhances user safety, and alleviates the drooping effect associated with other flexible sensors. The AmpFlex® has a mV output proportional to the current measured for direct readings on DMMs, loggers, oscilloscopes and power or harmonic meters. The length of the flexible sensor can be selected from 24" (450mm) to 60" (1520mm).    Model # 1000-24-2-1 (Cat. # 2112.98) Maximum Conductor Size 8" (190mm) Current Range 100 and 1000A rms AC Measurement Range 5 to 1000A Output Signal 10mV/A and 1mV/A Accuracy 1% ± 200mA Phase at 50Hz 0.7°   Frequency Range 10Hz to 20KHz Battery Type 9V Alkaline, Type LF22 Battery Life >150 hours continuous Operating Temperature 14° to +131°F  (-10° to +55°C) Storage Temperature -40° to +158°F  (-40° to +70°C) Operating Humidity 90% up to 104°F (40°C), Ampflex® Sensor The flexible sensor can withhold a temperature of 194°F (90°C) and is resistant to oil and Aliphatic hydrocarbons Cable Length (Module to Sensor 6.5ft (2m) Battery Indicator Green LED blink when battery needs replacement Overload Red LED ON when output around >4.5V Dimensions  (H x W x D) Module: 4.9 x 2.5 x 1.1” (124 x 64 x 28mm) Weight with 24” (610mm) Sensor 0.74 lb (336g) Pollution Degree 2 Ingress Protection (IP) IP65 sensor and IP40 electronic module EMC EN 61326-1 Safety Compliance EN/IEC 61010-1 600V CAT IV, 1000V CAT IIIEN/IEC 61010-032:2002
