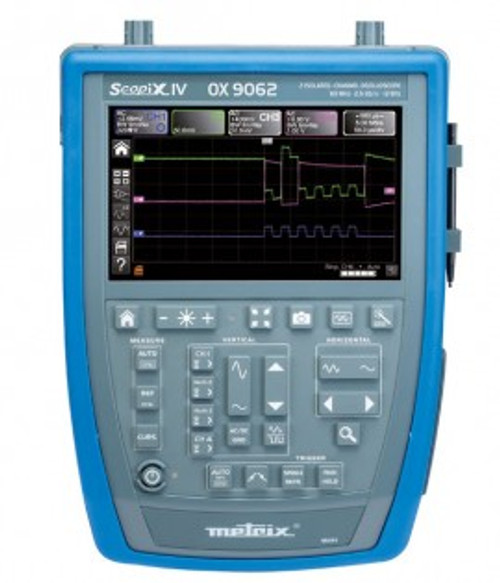

AEMC Hand-Held Oscilloscope Model OX 9062 IV 60MHz (2-Channel, 60 MHz {SPECIAL ORDER ONLY}

(No reviews yet) Write a Review

$3,345.00

Current Stock:

Quantity:

Adding to cart… The item has been added

Features

60 MHz bandwidth
Two isolated channels
Provides the following functional modes: oscilloscope, multimeter, logger, and harmonic analyzer
Large touch screen 7" color LCD display
Utilizes the patented system of "plug-and-play" accessories (sold separately), individual isolation of each of the measurement channels, and a range of remote management capabilities
The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC

Applications

Numbers of Channels	2 Isolated channels
Bandwidth	60 MHz
Input Impedance	1 M? ±0.5%, approx. 12 pF
Vertical
Vertical Sensitivity	16 ranges from 2.5 mV - 200 V/div and up to 156 ?V/div on vertical zoom mode (12-bit converter) - Accuracy ±2%
Maximum Input Voltage	600 V/CAT III (1000 V per Probix) - from 50 to 400 Hz - Probix connectors
Vertical Zoom	"One click Winzoom" system (direct graphical zoom onscreen) x 16 max
Horizontal
Time Base Speed	35 ranges from 1 ns/div. - accuracy ±[50 ppm + 500 ps] - Roll mode from 100 ms to 200 s/div
Horizontal Zoom	"One click Winzoom" system (direct graphical zoom onscreen) x 100 max
Trigger
Mode	Auto, triggered, one-shot, auto-level 50% on all channels
Type	Edge, Pulse width (16 ns to 20 s), delay (48 ns to 20 s), counting (3 to 16,384 events) Continuous adjustment of trigger position
Digital Memory
Maximum Sampling Rate	2.5GS/s in one-shot mode on each channel (100GS/s max. in ETS mode) 12 bits resolution
Memory Depth	100 kpts per channel and file viewer in the manager
Other Functions
FFT Analyzer & Math Functions	FFT (Lin or Log) with measurement cursors - Functions, +, - x, / and mathematical function editor
Multimeter Mode	2 channels, 8000 counts + Min/Max/Frequency/relative - TRMS - Time stamp graphic recording in logger mode
Harmonic Analyzer Mode	Multi-channel analysis: 2, 61 orders, fundamental from 40 to 450 Hz in auto or manual mode Simultaneous measurement: Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms)
