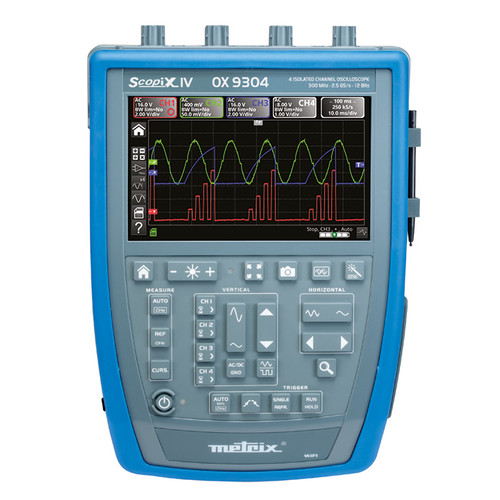

AEMC Handscope Oscilloscope Model OX 9304 IV 300MHz

$4,950.00
SKU:
OX 9304 IV 300MHz
Brand:
Quantity:

Product Description

AEMC Handscope Oscilloscope Model OX 9304 IV 300MHz   The Model OX 9304 Oscilloscope is a rugged, ergonomic, self-contained, hand-held, four-channel oscilloscope with 300MHz bandwidth, 4 channel DMM 8000 cts, FFT function and recording mode, and power measurement. Large touch screen 7” color LCD display Ideal for both laboratory and field use, the Model OX 9304 utilizes the patented system of “plug-and-play” accessories, individual isolation of each of the measurement channels, and a range of remote management capabilities. The Ethernet link and Wi-Fi lets you remotely control the oscilloscope without loading any software to your PC. Android App available to download from Google play store. CHANNELS Inputs / Bandwidth Isolated channels Input Impedance 1MΩ ± 0.5%, approx. 12pF INTERFACE Screen Specifications Color 7" WVGA TFT LCD touch screen, 800 x 480 Display Mode Vectors with interpolation - 2500 real acquisition points on screen Traces On Screen 4 Traces + 4 References (split screen and full screen modes) Front Panel Control 32 keys Screen Control Touch screen - ANDROID type icons and graphical commands VERTICAL Vertical Sensitivity 16 ranges from 2.5mV - 200V/div and up to 156µV/div om vertical zoom mode (12-bit converter) - Accuracy ±2% Max Input Voltage 600V/CAT III (1000V per Probix) – from 50 to 400 Hz - Probix connectors Vertical Zoom "One click Winzoom" system (direct graphical zoom onscreen) x 16 max HORIZONTAL Time Base Speed 35 ranges from 1ns/div. to 200s/div. - accuracy ±[50 ppm + 500 ps] - Roll mode from 100 ms to 200 s/div Horizontal Zoom "One click Winzoom" system (direct graphical zoom onscreen) x 100 max TRIGGER Mode Auto, Triggered, One-shot, Auto-level 50% on all channels Type Edge, Pulse width (16ns - 20s), delay (48ns - 20s), counting (3 to 16,384 events)Continuous adjustment of Trigger position Coupling AC, DC GND, HFR, LFR, noise - Level and Hold-Off adjustable from 64ns to 15s Autoset Complete <5s with recognition of channels - Frequency >30Hz Cursors Two or three cursors: V and T with auto measurement: T1, T2, Dt, 1/Dt, dBV, Ph DIGITAL MEMORY Max. Sampling Rate 2.5GS/s in one-shot mode on each channel (100GS/s max. in ETS mode) 12 bits resolution Memory Depth 100kpts per channel and file viewer in the manager Memory Capacity Internal = 1GB to store the files: trace, text, configuration, math functions, System memory: .pdf print files, .png image files+ high-capacity removable microSD-Card: SD 2GB, SDHC 4-32GB and SDXC >32GB GLITCH Mode Duration ≤ 2ns – 500,000 Min/Max pairs Display Modes Envelope, vector, accumulation -, averaging (factors 2 to 64) - XY (vector) and Y(f)=FFT OTHER FUNCTIONS FFT Analyzer & Math Functions FFT (Lin or Log) with measurement cursors - Functions, +, - x, / and mathematical function editor Automatic Measurement Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll Multimeter Mode 4 channels, 8000 counts + Min/Max/Frequency/relative – TRMS – Time stamp graphic recording in logger mode AC, DC, AC+DC Voltages 600mV to 600VRMS, 800mV to 800VDC: accuracy 0.5% Bandwidth 200kHz Power and PF Active, Reactive, and Apparent power values plus Power Factor simultaneously with the U & I measurements Resistance, Temperature, Capacitance, Frequency,  and Diode Test on channel 1 only Acquisition Duration: 20,000s - Interval: 0.2s - Files: 100,000 measurements Harmonic Analyzer Mode Multi-Channel Analysis 2, up to 61st, fundamental from 40 to 450Hz in auto or manual mode Simultaneous measurement Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms) GENERAL FEATURES Interface Isolated USB, WiFi, and Ethernet, SD micro card for direct transfer to PC. Web server/client with cursor and automatic measurements Batteries Rechargeable Li-Ion 6,900mAh 40W battery pack, External charger Charging Time 98 to 264VAC (50/60Hz) 2 hours when OFF Battery life Approx. 8 hours Dimensions (L x W x H) 11.5 x 8.29 x 2.6” (292.5 x 210.6 x 66.2mm) Weight 4.7 lbs. (2.1kg) Altitude Operating 2000m (6560ft) Operating Temperature 32° to 104°F (0 to 40°C) ≤80% RH Storage Temperature -4° to 140°F (-20 to 60°C) IP Rating IP54 per IEC 60529 Safety IEC/EN 61010-2-30 (1000V CAT II; 600V CAT III), IEC 1326-1
