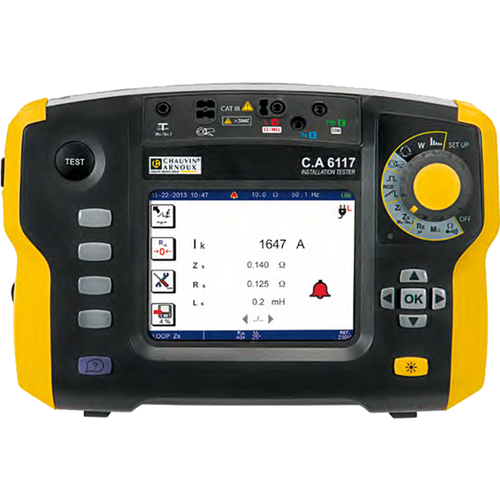

AEMC Multi-Function Installation Tester Model (US) {includes C177A, DataView? Software} C.A 6117 Kit

(No reviews yet) Write a Review

$3,670.00

Brand

Aemc

SKU:

2138.11

UPC:

6.85E+11

Description
0 Reviews

AEMC Instruments C.A 6117 Kit Description:

Features

Type-B RCD testing available
Built-in fuse table
Testing according to the international standards: IEC 60364-6, NF C 15-100, VDE 100, XP C 16-600, etc
Simple, reliable connection thanks to the contextual help for each function, including all the connection diagrams
Suitable for all neutral systems (TT, TN, IT)
Integrated fuse table for quick reading of the results on the instrument
Li-Ion battery for a longer battery life
Measurement of voltage drop for correct sizing of conductor diameters
Loop measurement with 1 m? resolution
3-level storage
Includes FREE DataView analysis software for programming, downloading, storing and report generation of test data

AEMC Instruments C.A 6117 Kit Specifications:

Continuity/Resistance
I Rated/Range/Resolution	I > 200 mA / 39.99 ? / 0.01 ? / ?(1.5% of measurement + 2cts) 12 mA / 39.99 ? & 399.9? / 0.01 & 0.1 ? / ?(1.5% of measurement + 5cts) with beep
Range/Resolution/Accuracy	4 k? / 1 ? / ?(1.5% of measurement + 5cts) 40 to 400 k? / 10 to 100 ? / ?(1.5% of measurement + 2cts)
Insulation
Rated Voltage	50/100/250/500/1000 V DC
Range/Resolution/Accuracy	0.01 M? to 2 G? / 10 k? to 1 M? / ?(5% of measurement + 3cts)
Short-Circuit Current	?3 mA
Ground Resistance
3-Point Range/Resolution/Accuracy	0.50 to 40 ? / 0.01 ? / ?(2% of measurement + 10cts) 40 ? to 15 k? / 0.1 to 1 ? / ?(2% of measurement + 2cts) 15 to 40 k?/10 ? / ?(10% of measurement + 2cts)
3-Point Ufk	Complies with SEV 3569
1-Point Selective Range/Resolution/Accuracy	0.20 to 39.99 ? ? 40 to 399.9 ? / 0.01 to 0.1 ? / ?(10% of measurement + 10cts) (ISel via clamp)
Loop Impedance (ZS (L-PE) & ZI (L-N OR L-L))/1-Point Live Ground
Integrated Fuse Table	Yes
Voltage Drop ?V% (Zi)	-40% to 40%
Live Ground Installation Voltage/Frequency	90 to 500 V / 15.8 to 17.5 Hz ? 45 to 65 Hz
High-Current Mode Range/Resolution/Accuracy	Max. Test Current: 7.5 A (0.050) 0.100 to 0.5 ? / 0.001 ? / ?(10% of measurement + 20cts) 0.5 to 3.999 ? / 0.001 ? / ?(5% of measurement + 20cts) 3.999 to 39.99 ? / 0.01 ? / ?(5% of measurement + 2cts) 39.99 to 399.99 ? / 0.1 ? / ?(5% of measurement + 2cts)
B-Type RCDs
Installation Voltage/Frequency	90 to 275 V / 15.8 to 17.5 Hz and 45 to 65 Hz
I?n: Ramp/Pulse 2 x I?n Pulse 4 x I?n	10 / 30 / 100 / 300 / 500 mA and 10 / 30 / 100 mA with pulse 4 I?n Duration: 150 ms with 4 x I?n or 300 ms with 2 x I?n
Test in Ramp Mode	0.2 x I?n to 2.2 x I?n
TRIP Test: 2 x I?n & 4 x I?n	I?N ? 200mA: 2.2 x 2 x I?n I?N > 200mA: 1.1 x 2 x I?n I?N ? 100mA: 2.2 x 4 I?N

What's included with the AEMC Instruments C.A 6117 Kit

Multi-Function Installation Tester
AC Current Probe
US Power Cord
US Charger
Li-lon Battery Pack
USB A/B Cable
3 x 3-Prong Safety Voltage Leads
3 x Test Probes
3 x Alligator Clips (Red/Blue/Green)
2 x Color-Coded Safety Leads (Red/Black)
Straight Plug, 4 mm
3-Prong US Measurement Cord
Remote Test Probe
Hand Strap
4-Point Hands-Free Strap
USB Drive with DataView Software and User Manual
Carrying Bag
