Fowler 54-212-016-1 HI_GAGE ONE 16"/400MM
(No reviews yet)
Write a Review
Write a Review
Fowler High Precision

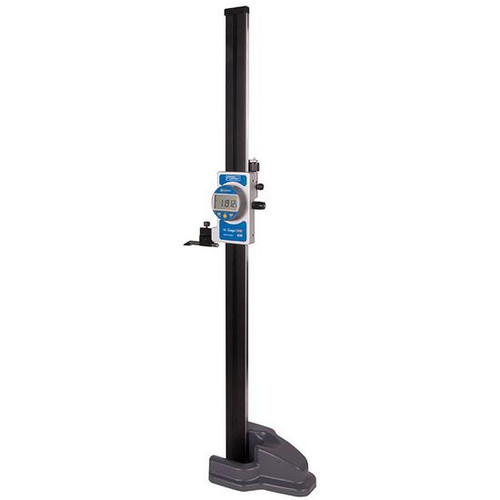

Fowler 54-212-016-1 HI_GAGE ONE 16"/400MM
$1,853.00
- Brand
- Fowler High Precision
- SKU:
- 54-212-016-1
Description
The Fowler 54-212-024-1 Hi_Gage ONE- 16"/400mm
Gaging.com is very excited about the new 54-212-016-1 Sylvac height gage! The repeatability and the new brake system Sylvac has incorporated into the gage are truly impressive. Combine that with the Fowler 2 year warranty and you can't go wrong with this one. Free 8mm ball probe included!
- Direct RS-232/USB output
- Innovative brake system. A quick twist and the reader head slides smoothly, release and the reader head locks into position. Excellent for scribing!
- The Sylvac measuring system is exceptionally fast (60" per second traverse) and is the most reliable and maintenance free system ever created for measurement.
- Scale not affected by oil, dust, chips, magnetism, shock, etc.
- True inch/metric conversion.
- Resolution: .0005"/.01mm
- Repeatability: .0004"/10µm
- Base size: 5.6" wide x 6.8" length
| 54-212-024-1 Measuring range | 400mm/16" |
| Resolution | 0.01mm/.0005" |
| Accuracy | 40um/.0016" |
| Repeatability | 10um/.0005" (+/- 1 digit) |
| Zero setting & Preset | |
| Selection of measuring direction | |
| Simple and intuitive functions | |
| S_Connect : Proximity & Power | USB / RS-232 / Wireless |
