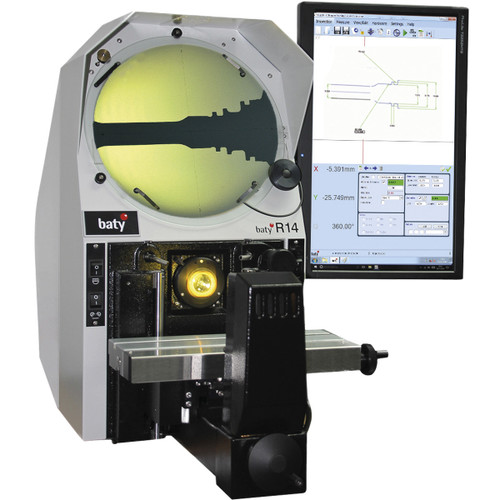

Fowler Baty R14 - FT2 - E Horizontal Optical Comparator with 27" FUSION Touch Screen DRO, Opt. Edge

Description

The Fowler Baty R14 bench mount optical comparator with its 340mm screen combines high accuracy non-contact measurement and inspection with a large 175mm x 100mm measuring range.

Choice of digital readouts and optional automatic profile edge detection ensures that you can have the comparator that fits your requirements. The horizontal light path configuration is ideally suited to turned machined parts that can be secured to the workstage using a range of optional accessories from the Fowler Baty fixture family. The compact and robust lightweight chassis makes the R14 ideal for workshop environments.

Features
? Windows based measuring with full reporting options, SPC, CAD import/export
? Optical edge sensor included
? 14"/340mm screen with 90? crosslines and chart clips
? Profile illumination with halogen lamp and green filter
? Lens magnification choice: 10x, 20x, 25x, 50x and 100x
? Surface illumination (fibre optic)
? Helix adjustment of light source ? 7? for accurate thread form projection
? Workstage with machined slot for holding accessories
? Workstage measuring range of 7"/175mm x 4"/100mm
? Digital angle measurement to 1 minute
? 0.5 micron resolution

Available Options
? Internally fitted automatic edge sensor
? Swing over lamphouse to allow clear access to the workstage
? Various display units are available to suit individual requirements
? Cabinet stand ensures a solid base and provides storage


    Projector  Type - R14
   Magnification               10x      20x      25x      50x      100x
   Field of view                35        18        14        7          4
   Working distance          82        38        24       15        31
   Maximum (half field)     103      103      80       45         96
   Working dia. (full field)  120      109      56       31         77

Specifications
