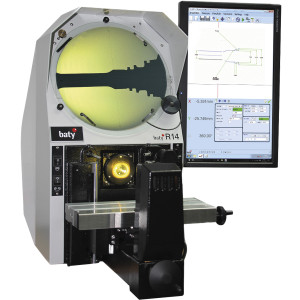

Fowler Baty R14 - GXL - E Horizontal Optical Comparator with DRO as GXL with added Optical Edge Sensor - 14" screen 53-900-801-1
- Brand
- Fowler High Precision
- SKU:
- 53-900-801-1
- Availability:
- Discontinued
Description
The Fowler bench mount profile projector 53-900-801-1 with its 340mm screen combines high accuracy
non-contact measurement and inspection with a large 175mm x 100mm measuring range.
Choice of digital readouts and optional automatic profile edge detection. The
horizontal light path configuration is ideally suited to machined parts that can
be secured to the workstage using a range of optional accessories. The compact
and robust lightweight chassis makes the optical comparator ideal for workshop environments.
GXL-E: As GXL with screen mounted automatic profile edge sensor.
As an option the sensor can be fitted internal
Features
340mm (14") screen with 90°crosslines and chart clips
Profile illumination with halogen lamp and green filter
Lens magnification choice: x10, x20,x25, x50 and x100
Surface illumination (fibre optic)
Helix adjustment of light source ± 7° for accurate thread form projection
Workstage with machined slot for holding accessories
Workstage measuring range of 175mm (7") x 100mm (4")
Digital angle measurement to 1 minute
Optional features
Internally fitted automatic edge sensor (illustrated)
Swing over lamphouse to allow clear access to the workstage
Various electronic measuring systems to suit individual requirements
Cabinet stand ensures a solid base and provides storage
Other options include foot switch control and printer
The basic model consists of:
340mm diameter translucent screen with chart clips
Digital angle measurement, with 1 minute of arc resolution
Profile illumination with fan cooled lamphouse
Surface illumination
Focussing single lens mount
x10 magnification lens
Collimation lens
Helix adjustment
Machine slotted, chrome plated, cast iron workstage
Green filter
Workstage
Measuring range: Horizontal (X) axis travel 175mm (7")/Vertical (Y) axis travel 100mm (4")
Surface area: 325mm (12.8") x 100 (4") with slot for mounting accessories
Scale resolution: 0.0005mm
Movement: Manual with fine screw adjustment, quick release on X axis
Optical System
Lens mount: Single, screw clamping
Lens magnification: x10, x20, x25, x50, x100,
Focussing: By hand wheel
Magnification accuracy: Profile 0.05%. Surface 0.1%
Helix adjustment: ± 7° by light source alignment
Light source: Profile illumination 12v 100w lamp (tungsten halogen)/Surface illumination 12v 100w lamp (tungsten halogen)
Option: Internally mounted edge sensor
Magnification | x10 | x20 | x25 | x50 | x100 |
Field of view | 1.4 (34) | 0.7 (17) | 0.53 (13.5) | 0.27 (6.8) | 0.13 (3.4) |
Working Distance | 3.2 (80.5) | 1.5 (38.5) | 1.1 (28) | 0.64 (15.5) | 1.2 (30) |
Max Work Diameter | 4.7 (119) | 4.3 (108) | 2.2 (56) | 1.2 (31) | 3.0 (77) |
Max Work Diameter | 3.9 (100) | 3.9 (100) | 3.1 (79) | 1.7 (44) | 3.7 (96) |
Maximum work piece | 100mm | 100mm | 100mm | 100mm | 100mm |
