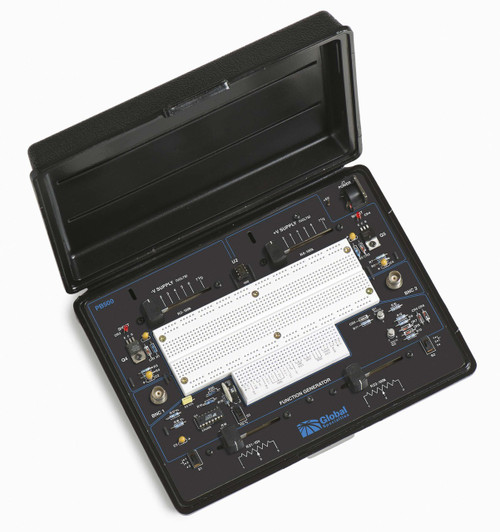

Global Specialties PB-500 Portable Analog Circuit Trainer

Description

The Global Specialties PB-500 Portable Analog Circuit Trainer is a compact portable analog circuit design trainer with built-in power supplies and function generator. It can be used for analog circuit design and classroom training purposes with a unique combination of built-in functions and uncommitted devices. The PB-500 contains all of the functions required for studying and experimenting with active filters, operational amplifiers, and other analog circuitry. Utilizing the PB-500, students will learn valuable hands-on breadboarding techniques and build a solid foundation in circuit experimentation, construction and analysis. The PB-500 is powered by an included UL-approved wall-mount power adapter.

Product Features:

• Compact analog trainer
• One UBS-100 breadboard with 840 tie-points and 8 power rails
• Two slide pots: 10 k? and 100 k?
• Two SPDT slide switches
• Two BNC connectors
• Power supply fixed ±12V DC @ 200 mA and variable 0 to ±7.5V DC @ 50 mA
• Power supplies short circuit protected
• LED indicator light
• Includes wall adapter and power cord
• One speaker: 2", 8 ?
