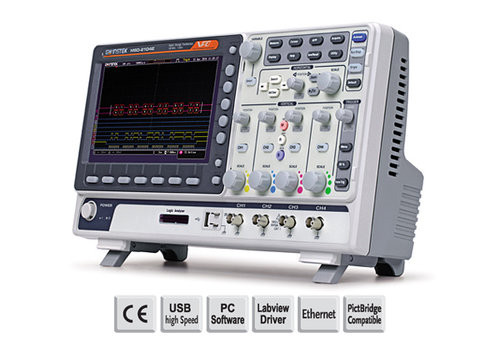

Gw Instek MSO-2074E 70MHz, 4-channel, Digital Storage Oscilloscope, 16-channel LA
Write a Review
GW Instek
Gw Instek MSO-2074E 70MHz, 4-channel, Digital Storage Oscilloscope, 16-channel LA
- Brand
- GW Instek
- SKU:
- MSO-2074E
- UPC:
Product Features:
- 70 MHz bandwidth
- 4 channels
- Equipped with a 16-Channel Logic Analyzer
Product Features:
- 70 MHz bandwidth
- 4 channels
- Equipped with a 16-Channel Logic Analyzer
- Maximum real time sample rate is 1 GSa/s
- Maximum 10M memory depth and VPO waveform display technology
- Waveform update rate up to 120,000 wfms/s
- 8" WVGA TFT LCD screen display
- Maximum 1M FFT provides higher frequency domain resolution measurements
- High Pass, Low Pass and Band Pass Filter Functions
- 29,000 segmented memory sections and waveform search function
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
- Data log function is able to track signal changes up to 100 hours
- Network storage function
Economical and Multi-Functional MSO
The Instek MSO-2074E is a mixed-signal oscilloscope, which offers 4 analog channels + 16 digital channels. The MSO2074E has a built-in 16-channel logic analyzer. The oscilloscope features a bandwidth of 70MHz. The four analog channel model provides 1GSa/s maximum real-time sampling rate. The 8-inch 800*480 TFT LCD and the minimum 1mV/div vertical range allows the MSO-2074E to measure complex feeble signals and clearly display measurement results.
MSO2074E provides 10M long memory for users to completely retrieve and analyze waveforms. Users, based upon the application requirements, can select 1k, 10k, 100k, 1M or 10M memory depth. Short memory depth collocating with the high sampling rate allows users to observe fast-changing waveforms and, on the other hand, long memory depth aims for continuously changing waveforms. The MSO-2074E is equipped with waveform search and segmented memory functions to expand the flexible applications of 10M long memory. The segmented memory can be divided the maximum into 29,000 sections for users to bypass any unimportant waveforms so as to swiftly search all required waveforms. With the segmented memory function, more meaningful waveforms can be saved and target waveforms can be displayed rapidly. Users, by using the waveform search function, can rapidly search desired waveforms according to the required trigger conditions.
16-channel logic analyzer
16-channel logic analyzer has a memory depth of 10Mpts per channel, which can retrieve more and longer digital signals as well as clearly display digital signals to obtain sufficient information for analysis. The minimum input swing of logic analyzer represents the minimum operating voltage of ±250 mV, which demonstrates that digital channels are highly sensitive with respect to input. The standard bus trigger and decoding functions include serial and parallel bus such as I2C, SPI, UART (RS232/422/485) and CAN/LIN bus for automotive communications. The parallel bus function is only for digital channels. Bus waveforms can be triggered and decoded in real time. The MSO-2074E offers complete analysis and debugging capabilities with the economical pricing.
Main Specifications | |
Channels | 4 Channels |
Bandwidth | DC~70MHz(-3dB) |
Rise Time | 5 ns |
Bandwidth Limit | 20mHz |
Display System | |
TFT LCD Type | 8" TFT LCD WVGA color display |
Display Resolution | 800 horizontal x 480 vertical pixels (WVGA) |
Interpolation | Sin(x)/x |
Waveform Display | Dots, Vectors, Variable persistence(16ms~10s), Infinite persistence |
Waveform Update Rate | 120,000 waveforms per second, maximum |
Display mode | YT ; XY |
Display Graticule | 8 x 10 divisions |
Interface | |
USB Port | USB 2.0 Full-speed host port x 1, USB High-speed 2.0 device port x 1 |
Ethernet Port (LAN) | RJ-45 connector, 10/100Mbps with HP Auto-MDIX |
Go/NoGo BNC | 5V Max/10mA TTL open collector output |
Kensington Style Lock | Rear-panel security slot connects to standard Kensington-style lock |
Vertical Sensitivity | |
Resolution | 8 bit :1mV~10V/div |
Input Coupling | AC, DC, GND |
Input Impedance | 1M?// 16pF approx. |
DC Gain Accuracy | ±(3%)when 2mV/div or greater is selected ±(5%)when 1mV/div is selected |
Polarity | Normal & Invert |
Maximum Input Voltage | 300Vrms, CAT I |
Offset Position Range | 1mV/div ~ 20mV/div : ± 0.5V ; 50mV/div ~ 200mV/div : ± 5V ; 500mV/div ~ 2V/div : ± 25V ; 5V/div~10V/div : ± 250V |
Waveform Signal Process | +, -, ×, ÷, FFT, FFTrms ,User Defined Expression FFT : 1Mpts ; FFT : Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS ; FFT Window Displays : Rectangular, Hamming , Hanning, Blackman-Harris |
Trigger | |
Source | CH1 ,CH2, CH3, CH4, Line |
Trigger Mode | Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence |
Trigger Type | Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Alternate,tme out, Event-Delay(1~65535 events), Time-Delay(Duration,4nS~10S), Bus |
Holdoff range | 4ns~10s |
Coupling | AC,DC,LF rej. ,HF rej. ,Noise rej. |
Sensitivity | 1div |
External Trigger | |
Range | ±15V |
Sensitivity | DC ~ 100MHz Approx. 100mV; 100MHz ~ 200MHz Approx. 150mV |
Input Impedance | 1M?±3%, ~16pF |
Horizontal | |
Time Base Range | 1ns/div ~ 100s/div (1-2-5 increments); ROLL : 100ms/div ~ 100s/div |
Pre-trigger | 10 div maximum |
Post-trigger | 2,000,000 div maximum |
Time Base Accuracy | ±50 ppm over any ? 1 ms time interval |
Real Time Sample Rate | Max. : 1GSa/s |
Record Length | 10Mpts/CH |
Acquisition Mode | Normal, Average, Peak Detect, Single |
Peak Detection | 2ns (typical) |
Average | Selectable from 2 to 256 |
X-Y Mode | |
X-Axis Input | Channel 1 ; Channel 3 |
Y-Axis Input | Channel 2 ; Channel 4 |
Phase Shift | ±3° at 100kHz |
Logic Analyzer Specs | |
Sample Rate | Per Channel 1GSa/s |
Bandwidth | 200MHz |
Record Length | Per Channel 10M pts (max) |
Input Channels | 16 Digital (D15 - D0) |
Trigger Type | Edge, Pattern, Pulse Width, Serial bus (I2C, SPI, UART(RS232/422/485), CAN, LIN), Parallel Bus |
Maximum Input Voltage | ±40 V |
Minimum Voltage Swing | ±250 mV |
Vertical Resolution | 1 bit |
|
