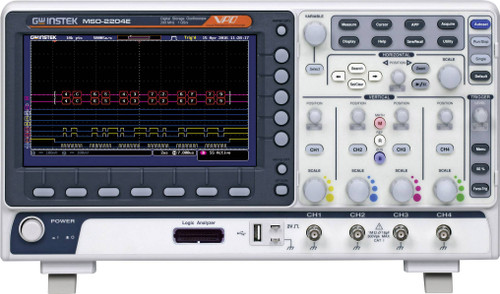

Gw Instek MSO-2102EA 100MHz, 2-channel, Digital Storage Oscilloscope, 16-channel LA, dual channel 25MHz AFG

(No reviews yet) Write a Review

$1,341.90

Brand

GW Instek

SKU:

MSO-2102EA

Description
0 Reviews

Product Features:

100 MHz bandwidth
2 channels
Equipped with a 16-Channel Logic Analyzer and a dual channel 25 MHz arbitrary waveform generator
Real time sample rate for each channel is 1GSa/s
Free Frequency Response Analyzer Software (Download from manufacture website only)
Maximum 10M memory depth and VPO waveform display technology
Waveform update rate up to 120,000 wfms/s
8" WVGA TFT LCD screen display
Maximum 1M FFT provides higher frequency domain resolution measurements
High Pass, Low Pass and Band Pass Filter Functions
29,000 segmented memory sections and waveform search function
I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
Data log function is able to track signal changes up to 100 hours
Network storage function

Economical and Multi-Functional MSO

The Instek MSO-2102EA is a mixed-signal oscilloscope, which offers 2 analog channels + 16 digital channels. The MSO2102EA has a built-in 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator. The oscilloscope features a bandwidth of 100MHz. The Dual analog channel models provide 1GSa/s real-time sampling rate per channel. The 8-inch 800*480 TFT LCD and the minimum 1mV/div vertical range allows the MSO-2102EA to measure complex feeble signals and clearly display measurement results.

For analog channels, the MSO2102EA provides 10M long memory for users to completely retrieve and analyze waveforms. Users, based upon the application requirements, can select 1k, 10k, 100k, 1M or 10M memory depth. Short memory depth collocating with the high sampling rate allows users to observe fast-changing waveforms and, on the other hand, long memory depth aims for continuously changing waveforms. The MSO-2102EA is equipped with waveform search and segmented memory functions to expand the flexible applications of 10M long memory. The segmented memory can be divided the maximum into 29,000 sections for users to bypass any unimportant waveforms so as to swiftly search all required waveforms. With the segmented memory function, more meaningful waveforms can be saved and target waveforms can be displayed rapidly. Users, by using the waveform search function, can rapidly search desired waveforms according to the required trigger conditions.

FRA Frequency Response Analyzer Software

MSO-2102EA also provides the frequency response analysis function (Bode plot). The FRA software can be directly downloaded from GW Instek website. Via arbitrary waveform generator, oscilloscope, and FRA software, users can obtain DUT's FRA characteristic curve plot. FRA has a very wide application range, including product circuit and component performance verification and analysis such as Feedback of Circuit Design, Filter Design, Amplifier Design, Resonant Circuit Design, Cable Frequency Response, and Signal Transformer Performance. Via FRA, users can preliminarily verify product and analyze component's characteristics without the expensive instrument.The frequency range of FRA is from 20Hz to 25MHz; the number of test point can be selected from 10 to 90 points per decade. After completing the Bode plot, users can select measurement curve by Cursor so as to retrieve each point's amplitude and phase on the curve.

16-channel logic analyzer

16-channel logic analyzer has a memory depth of 10Mpts per channel, which can retrieve more and longer digital signals as well as clearly display digital signals to obtain sufficient information for analysis. The minimum input swing of logic analyzer represents the minimum operating voltage of ±250 mV, which demonstrates that digital channels are highly sensitive with respect to input. The standard bus trigger and decoding functions include serial and parallel bus such as I2C, SPI, UART (RS232/422/485) and CAN/LIN bus for automotive communications. The parallel bus function is only for digital channels. Bus waveforms can be triggered and decoded in real time. The MSO-2102EA offers complete analysis and debugging capabilities with the economical pricing.

Dual channel 25MHz arbitrary waveform generator

In addition to a 16-channel logic analyzer, MSO-2102EA has a built-in dual channel 25MHz arbitrary waveform generator with the modulation capability and also features 14 bits vertical resolution; sample rate of 200MSa/s; 5 standard output waveforms (Sine, Square, Pulse, Ramp, DC, Noise) and 7 user-defined waveforms (Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac); AM/FM/FSK modulation and sweep function. The user friendly interface is the ideal choice for applications such as circuit simulation and education tests.

Main Specifications
Channels	2 Channels
Bandwidth	DC~100MHz (-3dB)
Rise Time	3.5ns
Bandwidth Limit	20mHz
Display System
TFT LCD Type	8" TFT LCD WVGA color display
Display Resolution	800 horizontal x 480 vertical pixels (WVGA)
Interpolation	Sin(x)/x
Waveform Display	Dots, Vectors, Variable persistence(16ms~10s), Infinite persistence
Waveform Update Rate	120,000 waveforms per second, maximum
Display mode	YT ; XY
Display Graticule	8 x 10 divisions
Interface
USB Port	USB 2.0 Full-speed host port x 1, USB High-speed 2.0 device port x 1
Ethernet Port (LAN)	RJ-45 connector, 10/100Mbps with HP Auto-MDIX
Go/NoGo BNC	5V Max/10mA TTL open collector output
Kensington Style Lock	Rear-panel security slot connects to standard Kensington-style lock
Vertical Sensitivity
Resolution	8 bit :1mV~10V/div
Input Coupling	AC, DC, GND
Input Impedance	1M?// 16pF approx.
DC Gain Accuracy	±(3%)when 2mV/div or greater is selected ±(5%)when 1mV/div is selected
Polarity	Normal & Invert
Maximum Input Voltage	300Vrms, CAT I
Offset Position Range	1mV/div ~ 20mV/div : ± 0.5V ; 50mV/div ~ 200mV/div : ± 5V ; 500mV/div ~ 2V/div : ± 25V ; 5V/div~10V/div : ± 250V
Waveform Signal Process	+, -, ×, ÷, FFT, FFTrms ,User Defined Expression FFT : 1Mpts ; FFT : Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS ; FFT Window Displays : Rectangular, Hamming , Hanning, Blackman-Harris
Trigger
Source	CH1 ,CH2,, Line, EXT
Trigger Mode	Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence
Trigger Type	Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Alternate,tme out, Event-Delay(1~65535 events), Time-Delay(Duration,4nS~10S), Bus
Holdoff range	4ns~10s
Coupling	AC,DC,LF rej. ,HF rej. ,Noise rej.
Sensitivity	1div
External Trigger
Range	±15V
Sensitivity	DC ~ 100MHz Approx. 100mV; 100MHz ~ 200MHz Approx. 150mV
Input Impedance	1M?±3%, ~16pF
Horizontal
Time Base Range	1ns/div ~ 100s/div (1-2-5 increments); ROLL : 100ms/div ~ 100s/div
Pre-trigger	10 div maximum
Post-trigger	2,000,000 div maximum
Time Base Accuracy	±50 ppm over any ? 1 ms time interval
Real Time Sample Rate	Max. : 1GSa/s
Record Length	10Mpts/CH
Acquisition Mode	Normal, Average, Peak Detect, Single
Peak Detection	2ns (typical)
Average	Selectable from 2 to 256
Logic Analyzer Specs
Sample Rate	Per Channel 1GSa/s
Bandwidth	200MHz
Record Length	Per Channel 10M pts (max)
Input Channels	16 Digital (D15 - D0)
Trigger Type	Edge, Pattern, Pulse Width, Serial bus (I2C, SPI, UART(RS232/422/485), CAN, LIN), Parallel Bus
Maximum Input Voltage	±40 V
Minimum Voltage Swing	±250 mV
Vertical Resolution	1 bit
AWG Specifications
Channels	2
Sample Rate	200 Msa/s
Vertical Resolution	14 bits
Max. Frequency	25 MHz
Standard Waveform	Sine, Square, Pulse, Ramp, DC, Noise
Built-in ARB Waveform	Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac
Output Range	20 mVpp to 5 Vpp, HighZ;10 mVpp to 2.5 Vpp, 50 ?
Output Resolution	1mV
Output Accuracy	2% (1 kHz)
Offset Range	±2.5 V, HighZ;±1.25 V, 50 ?
Offset Resolution	1mV

1 - Power Cord
1 - Certificate of Calibration
1 - CD-ROM (with Quick Start Guide, User Manual, Programming Manual)
2 - Passive probes
1 - GTL-16E, 16-channel logic analyzer probe
2 - GTL-110 BNC-BNC cables
