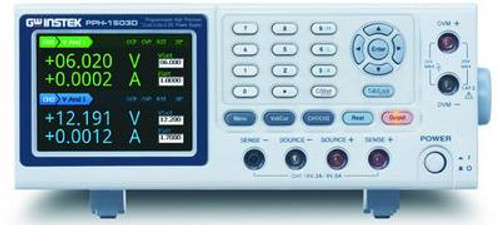

GW Instek PPH-1503 Dual Range (0-15V/0-3A or 0-9/0-5A) High Resolution Fast Rec

$1,530.34 $1,512.00
(You save $18.34)
SKU:
PPH-1503
Brand:
Quantity:

Product Description

GW Instek PPH-1503 Dual Range (0-15V/0-3A or 0-9/0-5A) High Resolution Fast Rec

Description

PPH-1503 is a high-speed and high-precision DC Power Supply with dual range of 15V/3A or 9V/5A.

Features

  • Dual Range Output (0~15V/0~3A) or (0~9V/0~5A)
  • 3.5 Inch TFT LCD Display
  • Constant Voltage and Constant Current Operation
  • Built-in DVM Measurement Function
  • High Measurement REsolution (1mV/0.1mA for 5A Range);(1mV/0.1uA for
  • 5mA Range)
  • EXternal Relay Control Output On/Off
  • Sink Current Capability (Maximum:2A)
  • Digital Panel Control
  • Selectable Output and Input (DVM) Ports From Front or Rear Panel
  • Key Lock Function
  • 5 Sets of Preset Memory Including Power Output ON/OFF States
  • High Speed Transient Recovery Time(<40us within 100mV ; <80us within
  • 20mV)
  • OVP/OCP/OTP Protection to Prevent DUT Damage
  • Standard Multiple Interfaces: USB / LAN /GPIB
  • Labview Driver and PC Remote Control Software
