Hioki IM9000 Equivalent Circuit Analysis Firmware
(No reviews yet)
Write a Review
Write a Review
Hioki
Hioki IM9000 Equivalent Circuit Analysis Firmware
$1,808.10
- Brand
- Hioki
- SKU:
- IM9000
- Availability:
- In Stock
Hioki IM9000 Description

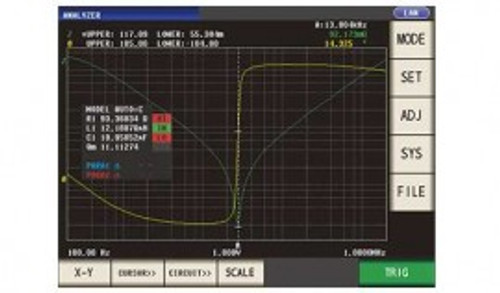

Upgrade the firmware on your Hioki IM3570 LCR Meter and Impedance Analyzer (sold separately) with this Hioki IM9000 Equivalent Circuit Analysis Firmware. After testing electrical components, this firmware can analyze circuits, create Cole-Cole plots and provide detailed acceptance/rejection decisions.
Features
- Upgrades the firmware of the Hioki IM3570 LCR Meter and Impedance Analyzer (sold separately)
- Facilitates Cole-Cole plots, simple circuit analysis and detailed acceptance/rejection decisions
- Capable of automatically selecting the equivalent circuit model from the 5 typical models
- Acceptance/rejection decision can be made for L, C and R elements
- Displays and compares an ideal frequency characteristics graph from results or values specified by you in Simulation function
- Comparator checks analysis results and outputs the results to the screen
