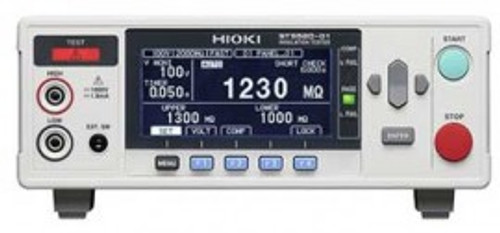

Hioki ST5520-01 Insulation Tester (Bench Type w/ BCD Output)

Hioki ST5520-01 Description

You can easily test insulation resistance and withstand voltage in electrical devices and components with this Hioki ST5520-01 Insulation Tester with BCD Output. Great for battery production lines, the tester quickly produces results in as little as 50 ms. Use the Contact Check function to ensure proper contact is made prior to running the test.

Features

• Use to measure insulation resistance and withstand voltage in electrical devices and components
• Delivers findings in as little as 50 ms with a 25 to 1,000 V test voltage at 1 V resolution
• Contact Check function checks if proper contact is made with the device before testing
• Short-Circuit Check function applies low voltage (2 to 4 VDC) to the test patterns in order to check for micro-shorting before insulation testing
• Quickly discharges residual voltage
• Description Upper_Fail, Pass and Lower_Fail comparison settings with audible sounds to notify you of the results
