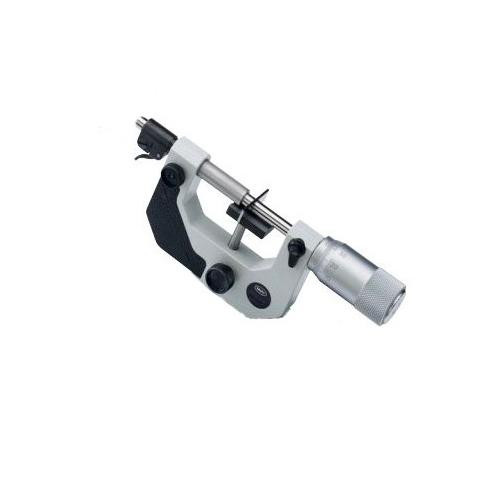

Mahr 4154031 40 TS MICROMETER W/O INDICATOR
$1,490.00
- Brand
- Mahr
- SKU:
- 4154031
- Availability:
- In Stock
Description
Precision bench micrometer Micromar 40 TS
Features:
- Operating and display units with satin chrome finish
- Rugged steel frame, can be inclined up to 45° from the sturdy base
- Retraction of the movable anvil ensures maximum wear resistance
- Height adjustable stop
- Constant measuring force
- Stainless spindle is hardened throughout and ground
- Spindle and anvil are carbide-tipped
- Locking device
Specification
| Micromar 40 TS | Art.-Nr. 4154031 | |
|---|---|
| Standard | DIN 863-3 |
| Measuring range mm | 0 - 50 |
| Error limit µm | 2 µm |
| Parallel error in µm | 2 µm |
| Flatness in µm | 0.2 µm |
| Spindle diameter | 7.5 mm |
| Spindle thread pitch_mm | 0.5 mm |
| Measuring force | 6.5 N |
| Measuring force (N) | 6.5 |
 | |
Variety of applications for our products
