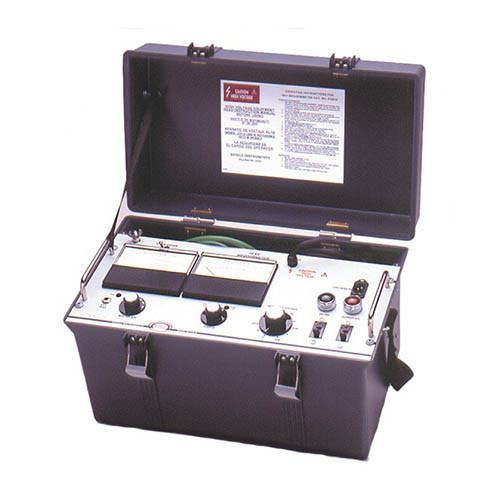

Megger 210400 5 kV Megohmmeter, 5000 V DC, 100,000 Megaohms
- Brand
- Megger
- SKU:
- 210400
- Availability:
- In Stock
Megger's 210400 5-kV Megohmmeters
The 210400 5kV Megohmmeter is a high-voltage, lineoperated instruments. They provide a continuously variable test voltage for highly sensitive insulationresistance measurements of all types of electrical equipment and power cable.
The instruments are designed to withstand harsh field conditions, and feature tough, impact-resistance casing, removable lids and adjustable carrying straps. For complete portability, there is ample room in each case to store cables and the instruction manual.
Applications
The units are suitable for dielectric absorption and stepvoltage testing. Two models are available:
The 5-kV Megohmmeter measures up to 100,000 M?; provides output from 250 volts to 5 kV, with direct reading up to 50,000 M? at 2.5 kV.
What's Included
- Ground connection cable, 10 ft [3 m]
- Test record card, universal
- Power cord, for Cat. No. 210415
- User Manual
Specification
Input Voltage | 120 V AC, 60 Hz |
Test Voltage | 0 to 5kV DC, negative with respect to ground |
Output Current | 5mA continuous |
Short Circuit Current | 12 mA maximum |
Kilovoltmeter | 114mm (4.5in) taut band |
Three Color Coded Scales | Red: 0 to 2.5 kV Black: 0 to 5 kV Green: 0 to 1 reference |
Megohmmeter | 114mm (4.5in) taut band |
Two Color Coded Scales | Red: 0.5 to 50 M-ohm Black: 1 to 100 M-ohm |
Accuracy | ?0.031 in. (0.08 cm) at any marking |
Operating Temperature | -17°C to 50°C |
Storage Temperature | -25°C to 70°C |
Dimensions | 254mm (H) x 260mm (W) x 355mm (D) |
Weight | 9.3 kg (20.5 lb) |
