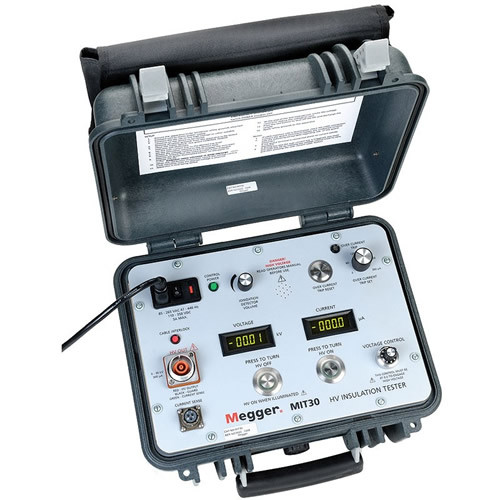

Megger MIT30 30 kV High Voltage Insulation Tester
  • Megger MIT30 30 kV High Voltage Insulation Tester
  • Megger MIT30 30 kV High Voltage Insulation Tester
  • Megger MIT30 30 kV High Voltage Insulation Tester
  • Megger MIT30 30 kV High Voltage Insulation Tester
  • Megger MIT30 30 kV High Voltage Insulation Tester

Megger MIT30 30 kV High Voltage Insulation Tester

(No reviews yet) Write a Review

Write a Review

Megger MIT30 30 kV High Voltage Insulation Tester
Megger
Megger MIT30 30 kV High Voltage Insulation Tester

MSRP:
Now: $11,271.75
Was:
(You save )
Brand
Megger
SKU:
MIT30
UPC:
Availability:
Discontinued


Adding to cart… The item has been added
Add to Wish List
  • Create New Wish List
  • Description
  • 0 Reviews

Megger MIT30 Offers

The Megger MIT30 is a portable 30-kV insulation tester that has been developed to undertake tests on UST (ungrounded test samples). It satisfies the demand for a variety of high voltage, high accuracy, and low current applications. The MIT30 is NOT suitable for use on grounded/earthed test samples.

The MIT30 has a test current of up to 330 ?A, and user selectable trip levels from 0 to 360 ?A. The MIT30 provides protection to the test piece against flashovers (arcing) and further damage in the event of a breakdown. An audible ionization indicator gives an audio indication of any electrical discharges present during the test period.

The MIT30 can be used to perform step-voltage and proof tests which, when incorporated into a routine maintenance program, can aid in predicting potential failure before breakdown occurs.

The MIT30 will operate from a wide range of input voltages and frequencies. The unit will will operate from 85-264 V ac with a frequency range of 47-440 Hz.

Applications

The MIT30 checks the electrical insulation quality and integrity of a wide variety of insulation material on UST ungrounded systems.

Due to the unique combination of up to 30-kV high voltage, high accuracy down to 100 nA, and low current 0-330 ?A, the MIT30 has several applications:

  • Acceptance and Maintenance Testing of Electrical Plant:
    • Switchgear
    • Buss-Bars
    • Capacitors
  • Defense Industry
  • Aerospace Industry
  • Rubber Safety Glove Testing
  • Testing of Vacuum Interrupters
  • Power Equipment/Plant Manufacturers to Perform QA/QC Production Tests

Key Features

  • Ergonomic design ensures ease of use, hence subsequent reduction in instrument learning time. This allows the operator to undertake accurate safety testing in a minimum amount of time.
  • Fast charging of high-capacitance samples reduces testing times.
  • Current guard circuit ensures highly accurate measurements and test results, thus avoiding external interferences that could affect the accuracy of any test results.
  • Highly accurate voltage and current outputs normally associated with a test bench or laboratory test set, in a rugged, field-proven case, takes high accuracy into the field environment.
  • User selectable current trip points provide protection to the test piece and the operator in the event of a breakdown in the insulation of the object being tested.
  • Adjustable ionization indicator gives audible indication of electrical discharges during test.
  • Universal input 85-264 V ac, 47-440 Hz makes the MIT30 suitable for a wide variety of applications.
  • Compact, lightweight and rugged construction makes the unit ideal for field use.
  • Its rugged, field-proven case has in integrated carry handle for easy carrying and an air transport pressure relief value which allows the instrument to be safely transported without damage.

Safety and Reliability

  • Fail-Safe, gravitationally invariant internal grounding switch
  • Zero-Start safety provision
  • Cable interlock with bright LED, visible even in direct sunlight
  • Triaxial HV output cable, with integrated HV, guard, and current sense
  • Detachable HV output cable, shielded with interlock provision
  • Output current overload relay
  • Switch control and indicating lights for high-voltage ON/OFF
  • Protected output for both short/open circuit conditions
  • Fused power inlet module

Specifications

Insulation ranges
Nominal Test Voltage 500 V, 250 V (d.c.)
Measuring Range
All instruments 10 k? - 999 M? on all ranges
Short Circuit Current 1.5 mA nominal
Test Current on Load 1 mA at min. pass values of insulation (as specified in BS7671, HD 384 and IEC 364)
Accuracy (at 20? C) ?3%, ?2 digits
Continuity ranges
Measuring Range 0,01 ? - 99,9 ? (0 -50 ? on analogue scale)
Open Circuit Voltage 5 V ?1 V
Short Circuit Current 200 - 215 mA
Terminal Characteristics

Accuracy (at 20? C) ?3% ?2 digits
Zero Offset Adjust 0 - 9 ?
Continuity Buzzer Operates at < 5 ? Response time <20 ms
Voltage range
Measuring Range 0 - 600 V a.c. (50/60 Hz) or d.c.
Accuracy (at 20? C) d.c. or a.c. (50/60 Hz) ?1%, ?2 digits
Temperature coefficient <0,1% per ?C on all ranges.
Default voltmeter
(all modes except off) Beeps and flash ?V? on the display
Test inhibit If more than 50 volts is detected, testing will be inhibited.
Temperature and humidity
Operating Range -10?C to +60?C
Operating Humidity 93% R.H. at +40?C max.
Storage Range -25?C to +70?C
Test Result Storage (1000 results)
Job Number 255 locations
Distribution Board no. 99 locations
Circuits 99 locations
Phases P1, P2, P3
Last recorded result may be recalled to the display. All data can be downloaded to a PC using Download Manager (supplied) or Megger Powersuite Professional of Windows software
Communications USB interface
Environmental Protection IP54
Fuses Terminals 500 mA (F) 600 V, 32 x 6 mm Ceramic HBC 10 kA minimum.
Display shows if fuse is ruptured.
Safety Meets the requirements of IEC61010-1 Cat III 600 V phase to earth.
Automatic discharge After an insulation test the item under test will be discharged automatically. Any voltage present will be indicated on the display so that the discharge can be monitored.
Power supply
Battery 8 x 1,5 V cells IEC LR6 type(AA alkaline). Rechargeable NiCd or NiMH cells may be used. Battery condition is constantly shown on the display as a four-section bargraph.
Battery Life 5000 consecutive tests (5 seconds per test) on any test using 2Ah batteries. Weight
All units 980 gms
Dimensions All units: 203 x 148 x 78 mm (8 x 5.7 x 3.2 inches)
E.M.C. In accordance with IEC61326 including amendment No.1

What's included with the Megger MIT30

  • HV Triaxial Output Cable, 3 m
  • Input Power Cord, 120 V
  • Input Power Cord, 230 V
  • Instruction Manual
Write a Review

0 Reviews Hide Reviews Show Reviews

  • Related Products
Megger MIT2500 2.5 kV High Voltage Hand-Held Insulation and Continuity Tester

Megger

Megger MIT2500 2.5 kV High Voltage Hand-Held Insulation and Continuity Tester

MSRP:
Now: $1,664.25
Was:
Megger MIT2500 OffersFeaturesInsulation testing up to 2.5 kV and 200 GO range in a hand held instrumentGuard terminal for high resistance accuracyAdjustable insulation test voltage from 50 to 2500...
Megger MIT2500 [1006-764] 2.5 KV High Voltage Hand-Held Insulation And Continuity Tester

Megger

Megger MIT2500 [1006-764] 2.5 KV High Voltage Hand-Held Insulation And Continuity Tester

MSRP:
Now: $1,850.00
Was:
MIT2500-LG2 (EN ES PT IT) Insulation and Continuity tester 50/100/250/500/1000/2.5kV + Guard+ Variable voltage + PAR/PI + Storage &amp; Bluetooth Download with Language Group LG2 - English, Spanish,...
Megger BM15 Analog 5 kV Insulation Tester, Battery-Powere

Megger

Megger BM15 Analog 5 kV Insulation Tester, Battery-Powere

MSRP:
Now: $3,470.00
Was:
Product Features Operates at four output test voltages to 5 kV Resilient mounted analog scale provides robustness Voltage range to 600 V indicates auto discharge Pass/fail overlays allow for rapid...
Megger MIT1525 15 kV Diagnostic DC Insulation Resistance Tester

Megger

Megger MIT1525 15 kV Diagnostic DC Insulation Resistance Tester

MSRP:
Now: $6,788.25
Was:
Megger MIT1525 OffersIdeal for original equipment manufacturers and industrial companies, this tester features a full suite of test modes, onboard memory, and the ability to stream data/download data...
Megger MIT300-EN MIT300 Insulation Tester EN

Megger

Megger MIT300-EN MIT300 Insulation Tester EN

MSRP:
Now: $855.00
Was:
Description Megger MIT300-EN Description Combine Safety with Durability The unit conforms fully to IEC 61010-1 for use in Category III 600V...
Add to Cart The item has been added
Free Shipping
For all orders over $250
Safe Payment
100% secure payment
24/7 Help Center
Dedicated 24/7 support
RETURN MONEY
If goods have problems
Friendly Services
30 day satisfaction guarantee
testequipmentusa.com

Call Us 7:30am - 4pm CST:
713-904-4604
Addresses : 9431 Winkler Dr
Houston, Texas 77017
ph: 713-904-4604
fax: 713.944.6537
Email: sales@testequipmentusa.com

Information

  • About Us
  • Contact Us
  • FAQ
  • RFQ
  • Blog
  • Sitemap

Brands

  • Vermont Gage
  • Mitutoyo
  • Mahr
  • MSA
  • Gedore
  • View All

Category

  • Products
  • Brands
  • Promotions
  • View All

Sign Up For Newsletter

By clicking on the subscribe button, you are agreeing to the processing of your information within the scope of our Private Policy.

sales@testequipmentusa.com
  • About Us
  • Contact Us
  • FAQ
  • RFQ
  • Blog
  • Sitemap
© 2025 testequipmentusa.com

Returns Policy

Privacy policy

Powered by LiveSupporti
