Mitutoyo D-EV Display Unit - 02ADD400
- Display unit for the EV counter.
- Allows set-up of EV counter without a personal computer or other equipment.
- Able to display each gage measurement value and GO/NG judgment result, total GO/ NG judgment result for all gages, setting details, and errors.
- You can connect up to six gauges, and by using the RS Link function, you can connect up to 10 EV Counters to one PC.
- Multi-point measuring systems with a maximum of 60 gauges can be configured.
- You can select several different output modes, including I/O output for tolerance judgement and Segment output, BCD data output and RS-232C output.
Specifications:
| Order No | 02ADD400 |
| Number of connections | 1 EV counter per unit |
| Number of digits | Sign plus 6 digits (8 digits internal to EV counter) |
| LED display | Channel display (also for judgment result display): 3 (3-color LED) Measurement mode display (current data, maximum value, minimum value, runout): 2 Status display: 1 (2 colors) |
| Operation switches | 4 |
| Function of operation switch | Channel switching, measurement mode switching (current data, maximum value, minimum value, runout), parameter setting, presetting, tolerance setting |
| Input/output | RS Link connectors: 1 each for IN, OUT |
| Error message | Overspeed, gage error etc. |
| Power supply | Terminal block (M3 screw), 12 - 24V DC, 200mA |
| Operating temperature (humidity) range | 0 to 40°C (RH 20 to 80%, no condensation) |
| Storage temperature(humidity) range | 10 to 50°C (RH 20 to 80%, no condensation) |
| External dimensions | 96(W)×48(H)×84.6(D)mm |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 542-063 EV-16P COUNTER FOR LG
$1,748.00
Description You can connect up to six gauges, and by using the RS Link function, you can connect up to 10 EV Counters to one PC. Multi-point measuring systems with a maximum of 60 gauges can be...
Mitutoyo

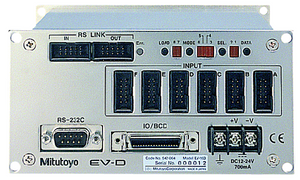

Mitutoyo 542-064 EV-16D COUNTER
