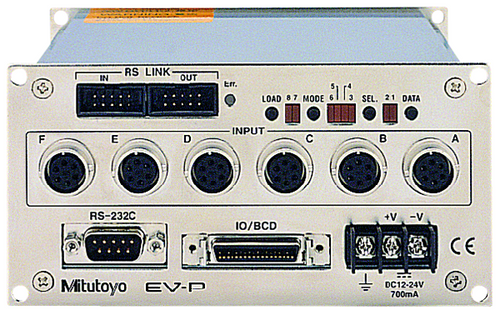

Mitutoyo 542-063 EV-16P COUNTER FOR LG
$1,748.00
- Brand
- Mitutoyo
- SKU:
- 542-063
- Availability:
- DISCONTINUED WITHOUT A REPLACEMENT
Description
- You can connect up to six gauges, and by using the RS Link function, you can connect up to 10 EV Counters to one PC.
- Multi-point measuring systems with a maximum of 60 gauges can be configured.
- You can select several different output modes, including I/O output for tolerance judgement and Segment output, BCD data output and RS-232C output.
Specification
Resolution: |
0,0005/0,001/0,005/0,01
(no display) |
ZERO SET: |
Yes
|
Model: |
For 542-063
|
Power supply: |
Terminal connector (M3 screws), DC+12 to +24V,700 mA (max.)
|
PRESET: |
Yes
|
External HOLD: |
Yes
|
MAX?/?MIN?/?Difference measurement: |
Yes
|
Maximum input frequency: |
1.25 MHz (differential square-wave) : Max counting Speed : 5MHz
|
Mm?/?inch switching: |
Yes
|
Max. input frequency: |
1,25 MHz (2-phase square wave), response speed depends on gauge specification.
Max.counting speed: 5MHz |
Environmental conditions: |
0°C to 40°C (20 % to 80 % relative humidity, no condensation) °C
|
RS link: |
Yes
|
Input signal type: |
Differential square-wave
|
Applicable gauge: |
LGF, LGK, LGB, LG, LGM, LGH
(excluding LGF-Z with reference point, LGH with 0.01 µm resolution), LG100 with connector adapter plug 21HZA195 |
Gauge inputs: |
6
|
Delivered: |
AC adapter, AC cable and terminal connecting cables are not included. Please see accessories below.
|
Mass: |
910
|
Counting direction switchable: |
Yes
|
External PRESET / ZERO: |
Yes
|
Calculation function (with formula): |
Yes
|
Display: |
D EV Unit:
red LED display, 6 digit plus sign 8 digit internal to EV-Counter |
Tolerance judgement display: |
LED display (3 steps: Amber, Green, Red)
|
