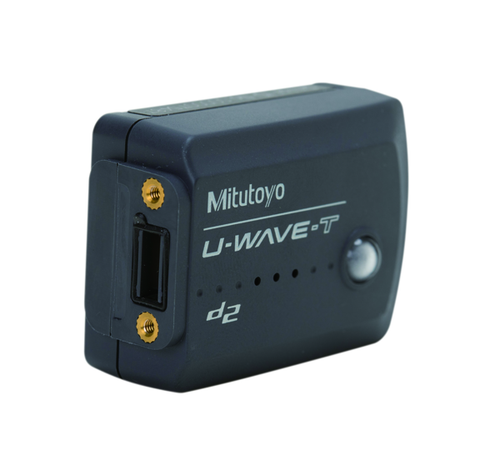

Mitutoyo 02AZD880G U-WAVE-T/BUZZER TYPE
$278.00
- Brand
- Mitutoyo
- SKU:
- 02AZD880G
- Availability:
- In Stock
Description
The Mitutoyo U-WAVE system enables easy wireless data communication from a measuring tool to a PC using the Digimatic protocol. Measurement workability is improved by eliminating the long and cumbersome data cables usually required and the user-friendly interface allows data to be loaded into any software product that accepts keyboard input, such as Excel* or Notepad.
Properties
| Wireless communication protocol: | Proprietary (2,4 GHz by original specification based on IEEE 802.15.4) |
| Modulation method: | DS-SS (Direct Sequence Spread Spectrum) |
| Measuring Instruments: | Indicator, 3-Point Inside Micrometer, Carbon Fibre Caliper, Height Gauge, a.s.o |
| Remarks: | Standard |
| Data reception indication: | Buzzer and LED (green, red, orange) |
| Communication distance: | Approx. 20 m (within visible range) |
| Communication speed kbps: | 250 |
| Power supply: | Battery CR2032 |
| Communication with measuring tool: | Digimatic (6 digits), Digimatic 2 (8 digits) automatic identification |
| Communication frequency: | 2,4 GHz band (2,405-2,475 GHz, 15 channels, 5 MHz interval) |
| Transmission output: | 2,5 mW (4 dBm) or below |
| OS compatibility: | Windows? 2000 Professional (=SP4), Windows? XP Professional (=SP2), Windows? XP Home Edition (=SP2), Windows Vista?, Windows? 7 (32bit, 64bit), Windows? 8, 8. 1, 10 (32bit, 64bit) |
| Battery life: | Approx. 400000 transmissions |
