Description

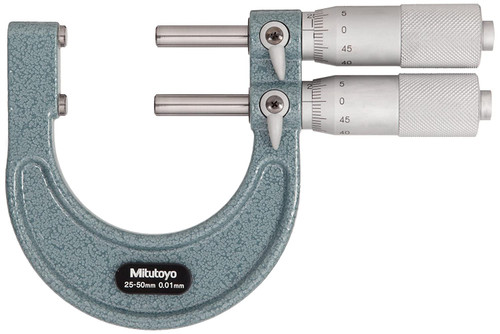

A dual, non-digital Mitutoyo micrometer arranged as a GO/NG adjustable snap gauge, able to test component size against upper and lower tolerance limits simultaneously.Specification
| Inch-Metric: | Metric |
| Range: | 25 - 50 |
| Graduation: | 0,01 mm |
| Maximum Permissible Error J MPE: | ±3 µm |
| Flatness: | 0,6 µm |
| Parallelism: | 3 µm |
| Digital/Analog: | Analog |
| Measuring face: | Carbide-tipped micro-lap finish, with chamfer |
| Measuring spindle: | With spindle lock, ø6,35 mm, spindle pitch 0,5 mm |
| Scale: | Thimble and sleeve satin chrome finish, ø18 mm |
| Measuring force: | 5 - 10 |
| Delivered: | Including box, setting standard (from 25 mm upward), key |
| Mass: | 380 |
