Mitutoyo 139-180 MIC, INSIDE, 4-52", 0.001"
$1,460.00
- Brand
- Mitutoyo
- SKU:
- 139-180
- Availability:
- In Stock
Mitutoyo 139-180 Specifications
| Range | 4 to 52" |
| Mass | 1090 g |
| Accuracy | ±[0,00015+0,00005n+0,00005(L/2)]", n = Number of rod, L = Maximum measuring length (mm) |
| Measuring Surfaces | Carbide |
| Measuring Spindle | Spindle pitch 0.635 mm |
| Extension | ? 17 mm |
| Measuring Span | 1" |
| Graduation | 0.001 mm |
| Digital/Analog | Analog |
| Inch-Metric | Inch |

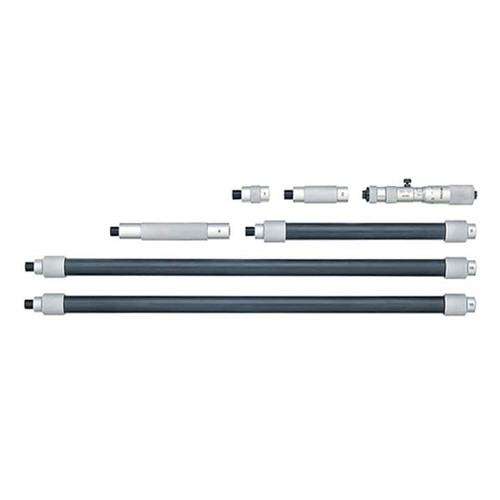

What's included with the Mitutoyo 139-180
- Tubular Inside Micrometer
- 1" Extension Pipe
- 2" Extension Pipe
- 4" Extension Pipe
- 8" Extension Pipe
- 2 x 16" Extension Pipe
- Box
- Key
