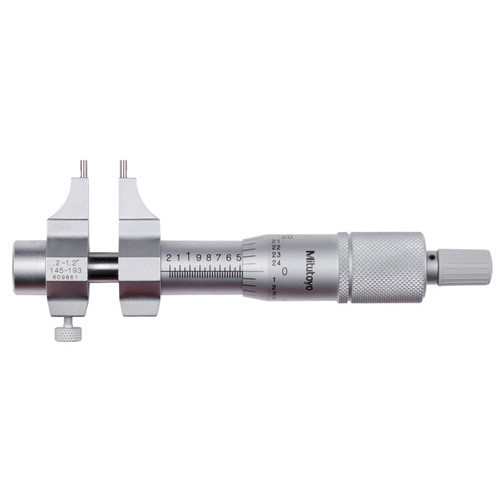

Mitutoyo 145-193 MIC, INSIDE, 0.2-1.2" 0.001" A
(No reviews yet)
Write a Review
Write a Review
Mitutoyo
Mitutoyo 145-193 MIC, INSIDE, 0.2-1.2" 0.001" A
$248.40
- Brand
- Mitutoyo
- SKU:
- 145-193
Description
The Caliper Jaw Inside Micrometer offers you the following benefits:- Carbide measuring faces
- A setting standard (optional) is needed to accurately set the micrometer to the reference point.
Specification
| Range: | 0.2 - 1.2 |
| Graduation: | 0,001" |
| Maximum Permissible Error J MPE: | ?0,00025" |
| Measuring spindle: | With spindle lock, spindle pitch 0,635 mm |
| Measuring face: | Carbide tipped |
| Measuring force: | 1-6 |
| Delivered: | Including box, key |
| Digital/Analog: | Analog |
| Mass: | 130 |
| Inch-Metric: | Inch |
