Description
These micrometer heads come with a large thimble, allowing you to make fine adjustments.They offer the following benefits:
- The large scale drum allows fine graduation and very easy rotation.
Specification
| Inch-Metric: | Inch |
| Range: | 0 - 2" |
| Graduation: | 0.0001" |
| Maximum Permissible Error J MPE: | ±0,0001" |
| Digital/Analog: | Analog |
| Measuring face: | Carbide tipped |
| Spindle end: | Flat |
| Spindle pitch: | 0,5 mm mm |
| Stem: | w/ clamp nut |
| Stem Ø: | 0.5 in |
| Fixture thickness for clamp nut: | 22.5 |
| Special features: | Bidirectional graduation |
| Mass: | 460 |
0 Reviews Hide Reviews Show Reviews
Mitutoyo
Mitutoyo 152-401 MICROMETER HEAD
$409.50
Product Description 152-401 Mitutoyo Micrometer Head for XY Stage: 0-25mm (Y-Axis) The Mitutoyo152-401Micrometer Head for XY Stage has the following specifications: Range: 0-25mm Graduations: .001mm...
Mitutoyo
Mitutoyo 152-392 MICROMETER HEAD
$340.00
Product Description 152-392 Mitutoyo Micrometer Head for XY Stage: 0-1" (X-Axis) The Mitutoyo 152-392 Micrometer Head for XY Stage has the following specifications: Range: 0-1" Graduations:...
Mitutoyo

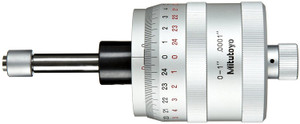

Mitutoyo 152-391 MICROMETER HEAD
