Description

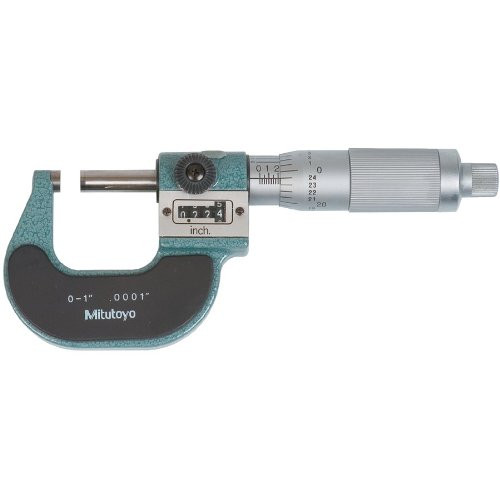

A mechanical-digit Mitutoyo micrometer with a vernier scale on the sleeve to provide high resolution. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A friction thimble guarantees repeatable measurement.
Specification
| Inch-Metric: |
Inch
|
| Range: |
0 - 1
|
| Graduation: |
0,0001"
|
| Maximum Permissible Error J MPE: |
?0,0001"
|
| Parallelism: |
[0,00008+0,00004(L/4)]?, L = max. range (inch)
|
| Digital/Analog: |
Analog
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Measuring spindle: |
With spindle lock, ?6,35 mm, spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ?18 mm
|
| Measuring force: |
5 - 15
|
| Delivered: |
Including box, setting standard (from 25 mm upward), key
|
| Mass: |
222
|
